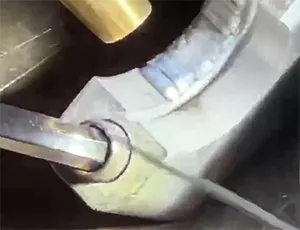

Fiber laser welding is a precise process that uses a focused laser beam transmitted through optical fibers. This beam creates a small, extremely intense spot on materials such as metals. The intense heat melts the material, forming a keyhole that enables deep penetration welding. The result is strong, narrow welds with high aspect ratios and minimal heat-affected zones. With its superior precision, faster processing speed, and reduced distortion, fiber laser welding has become a dominant technology in industries like automotive and aerospace.
The system can weld a wide range of materials, including gold, silver, copper, stainless steel, aluminum, iron, and dissimilar metals.
Mold Industry and Repair: Ideal for overlay welding, tailored blank welding, and joining dissimilar metals in mold manufacturing and repair processes.

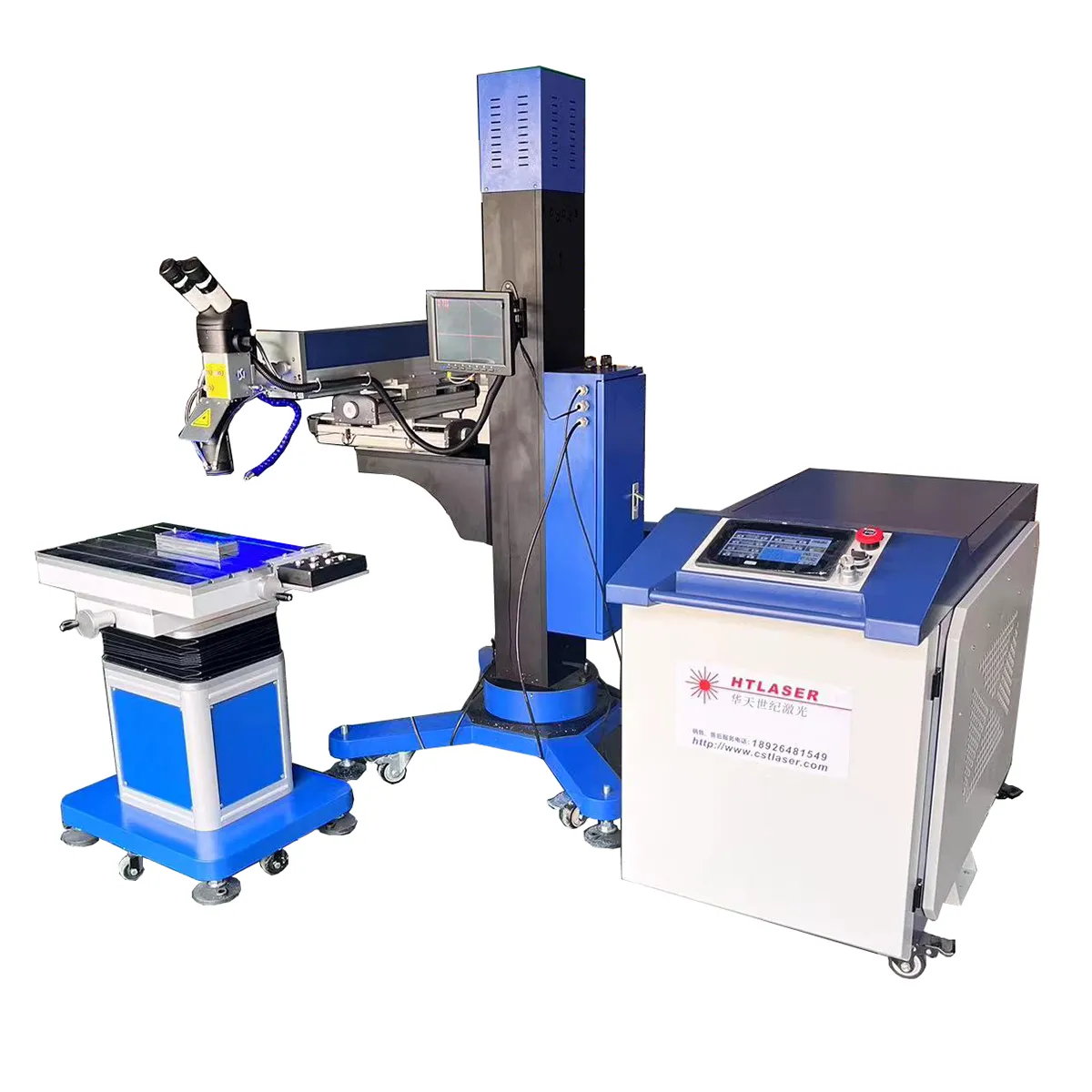

| Model | HT-FW-F1500 | HT-FW-F2000 | |
| Laser power | 1500W | 2000W | |
| Laser wavelength | 1080±5nm | ||
| Power adjustment range | 10%-100% | ||
| Modulation frequency | ≤1000HZ | ||
| Size of light spot | 0.1mm-1mm | ||
| Work environment | 10℃-40℃, 5-95%Relative humidity (no condensation) | ||
| Total Power Consumption | <8KW | ||
| Power supply | 380V/50HZ/60A | ||
| Cooling system | water cooling | ||

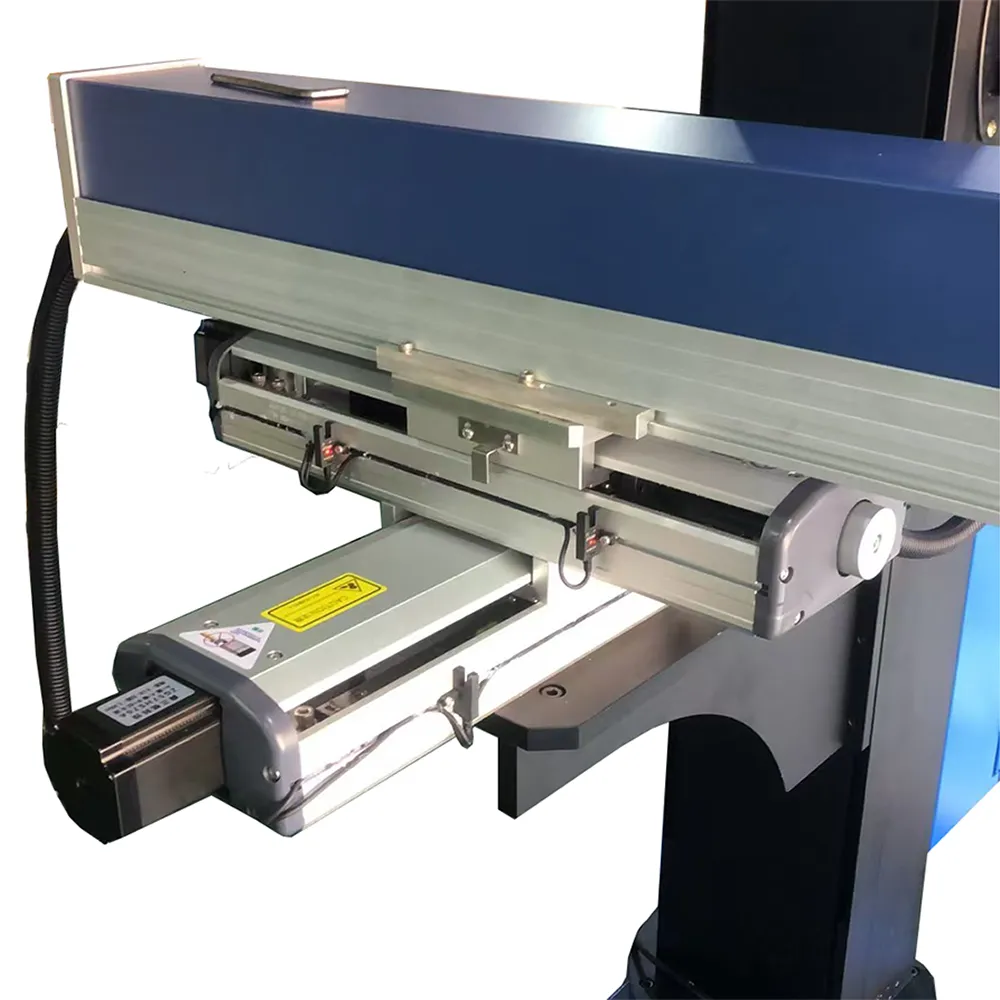

| Workbench adjustment range | X=300mm,Y=200mm,Z=300mm(X, Y hand control，Z automatic control) | ||
| Workbench size | 500mm*350mm | ||

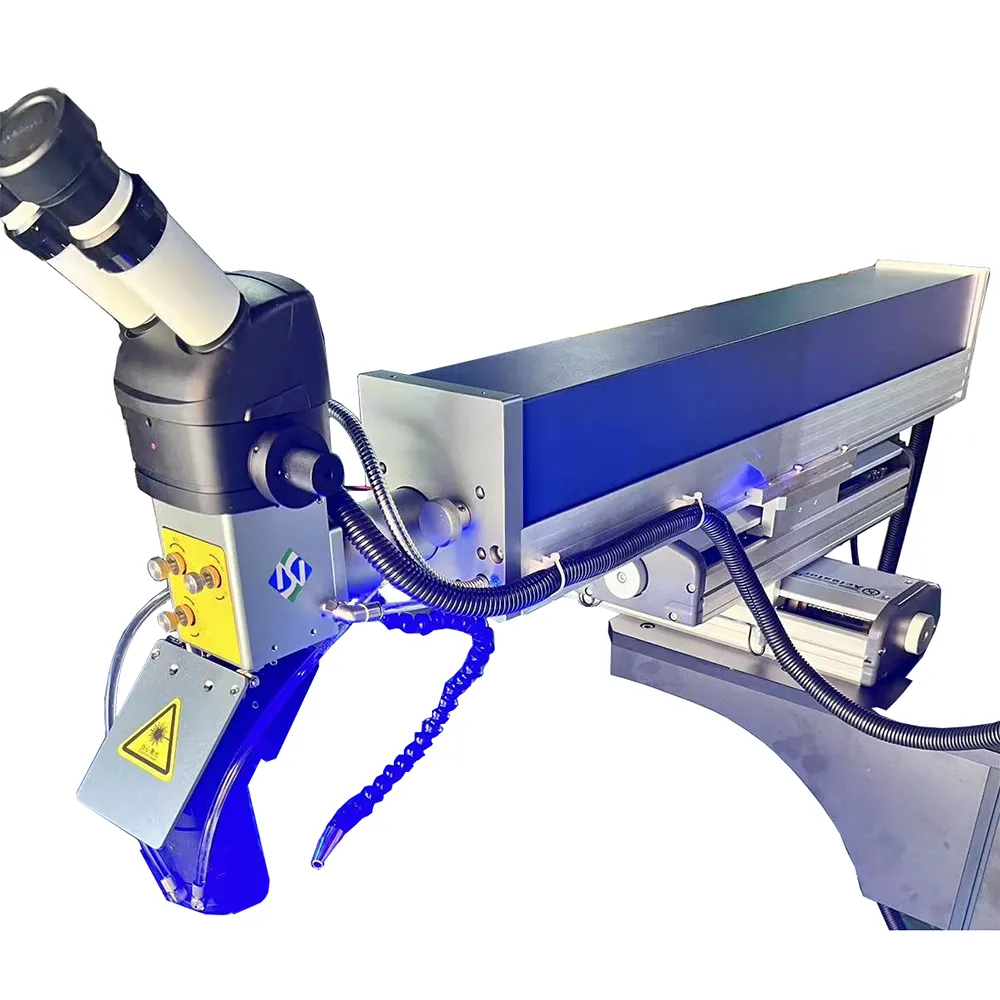

| Observing system | Microscope,CCD monitor | ||
| Flexible focus head | X/Y-axis 360° rotate | ||
