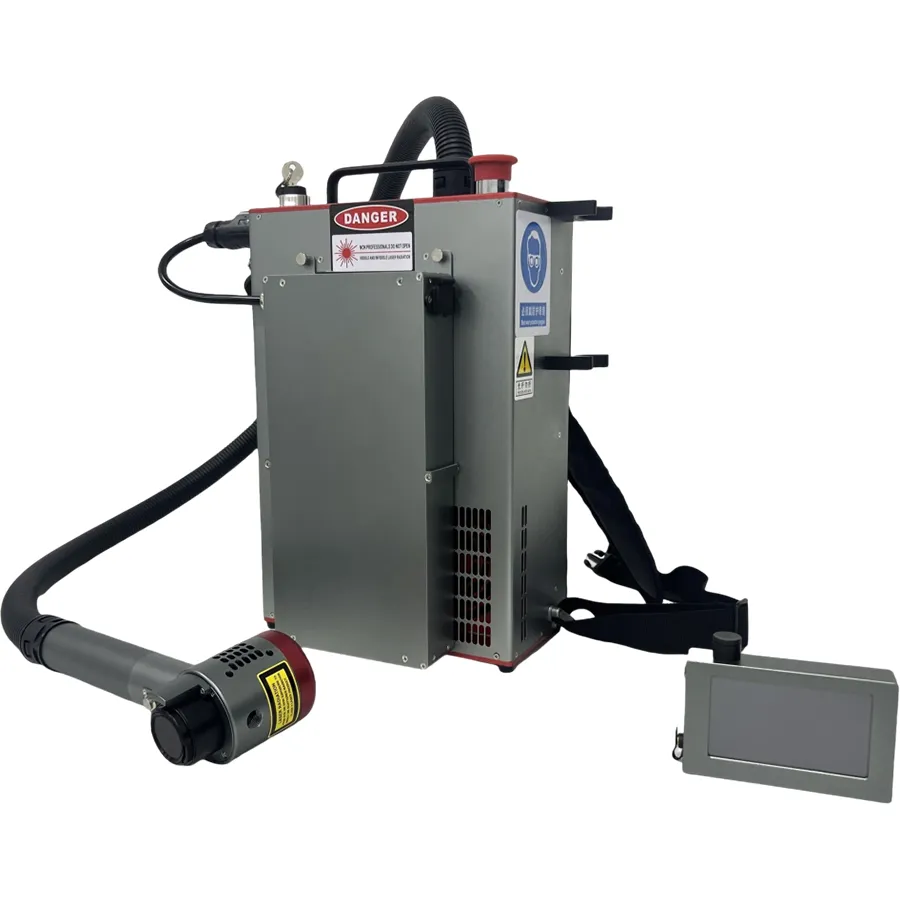

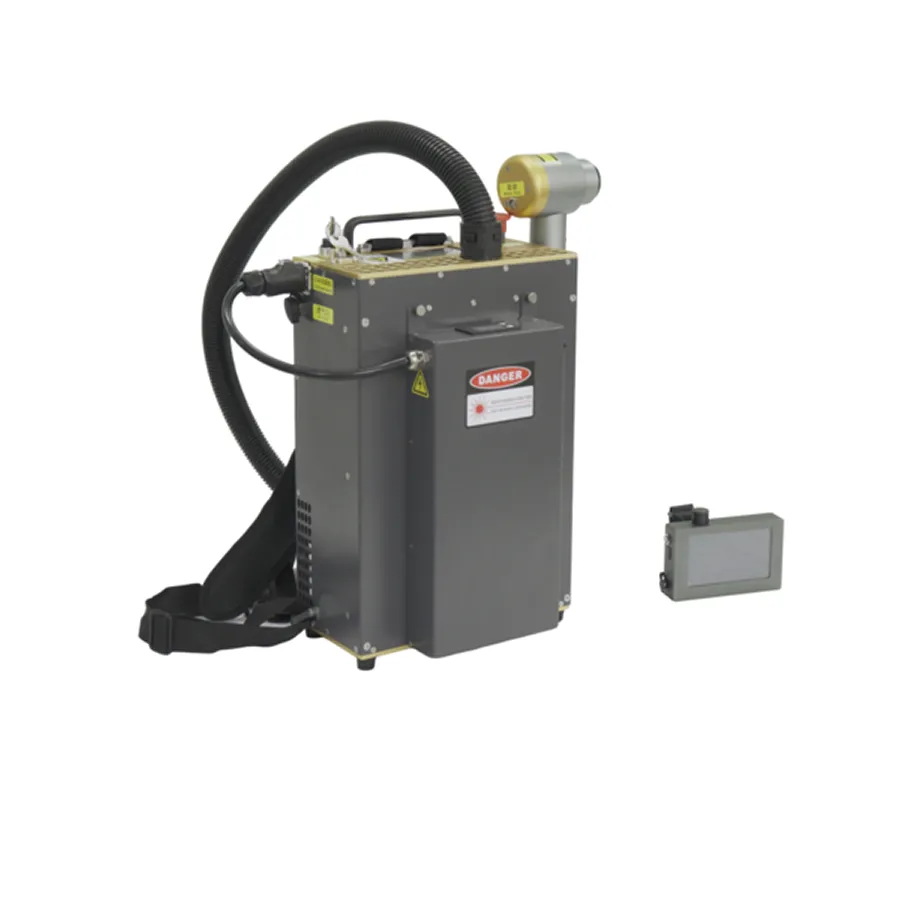

Backpack Laser Cleaning Machine
Product Categories
Contact Us
Product Description
Key Features
- Compact & Lightweight Design – Handheld operation (with battery total weight only 12-17kg).
- Removable High-Capacity Battery – Supports 80-90 minutes of continuous full-power operation.
- Wireless Touchscreen Control – Independent remote display for quick and convenient parameter adjustment.
- 8 Versatile Cleaning Modes – Line, Rectangle (unidirectional/bidirectional), Circle, Sine Wave, Helix, Ring, and Rotation patterns for precision cleaning.
- Pre-Set & Customizable Process Libraries – Quick-start presets + customizable settings for efficient workflow.
- Ergonomic Engineering – Reduces operator fatigue, enabling longer working sessions with minimal strain.
Suitable Materials
| Application & Materials |
| Rust/Paint/Oxide Removal |
Steel, aluminum, galvanized metals |
| Mold Cleaning |
Rubber, tire, electronic molds |
| Aerospace & Automotive |
Aluminum alloys, coated metals |
| Cultural Artifact Restoration |
Stone, antique metals, ceramics |
| High-Reflection Metal Cleaning |
Copper, gold, silver, galvanized sheets |
| Large-Area Industrial Cleaning |
Steel, concrete, marble |
| Outdoor/Height Cleaning |
Metals, walls, structures |
Technical parameter
| Operating environment |
| Model | HT-BP-FLC100 | HT-BP-FLC200 | HT-BP-FLC300 |
| Supply voltage | Standard AC220V±10%, 50/60Hz power adapter (output DC48V)Lithium battery(optional), continuous work at full power for 80-90min |
| Power consumption | ≤600W | ≤800W | ≤1100W |
| Working environment temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters |
| Average laser power | ≥100W | ≥200W | ≥300W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 150-190ns | 13-500ns |
| Maximum monopulse energy | 1.7mJ | 2mJ | 5mJ | 2mJ | 5mJ-15mJ |
| Power regulation range（%） | 10-100(Gradient Adjustable) | 0-100(Gradient Adjustable) |
| Repeat frequency（kHz） | 20-200(Gradient Adjustable) | 1-3000(Gradient Adjustable) |
| Fiber length | 1.5m |
| Cooling mode | Air cooling |

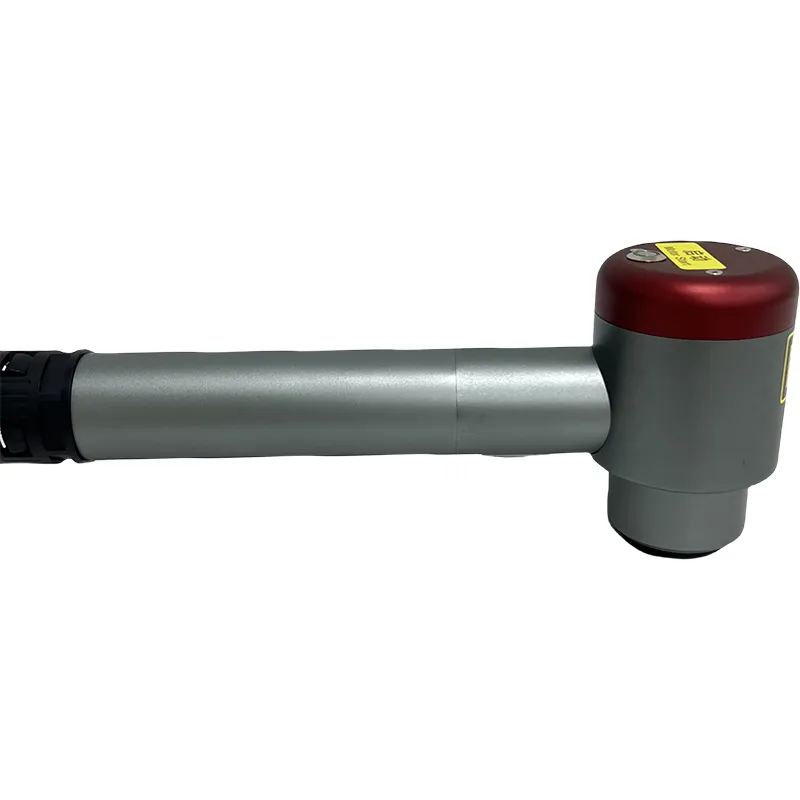

| Cleaning Head Parameters |
| Scan range | 0~100 mm | 0~145mm |
| Daul axis supports 8 kinds of scan modes |
| Lens focal length（mm） | 160mm(Optional 210mm/254mm/330mm/420mm) | 210mm | 160mm | 210mm |
| Depth of focus | Approx. 5 mm |
| Machine Size & Package |
| Machine dimension(L*W*H, without battery) | 213mm*123mm*339mm | 268mm*135mm*445mm |
| Machine dimension(L*W*H, With battery) | 213mm*168mm*339mm | 268mm*191.5mm*445mm |
| Size after packing（Length, width and height） | 860*840*420mm | 860*840*340mm |
| Net Weight(Without battery) | 8.5 Kg | 12.5Kg | 13.47Kg |
| Net Weight(With battery) | 12 Kg | 17Kg | 18.08Kg |
| Gross Weight(Carton packing) | 18.9Kg(without battery) | 23Kg(without battery) | 24Kg(without battery) |
| 22.1 Kg(with battery) | 27.5Kg(with battery) | 28.5Kg(with battery) |
| Gross Weight(Wooden box packing) | 42.1Kg(Without battery) | 49.9Kg(without battery) | 51Kg(without battery) |
| 45.3 Kg(with battery) | 55.3Kg(with battery) | 56Kg(with battery) |
| Cleaning head weight （excluding optical head） | ＜0.75Kg |
| Mode of operation | Handheld/automation |

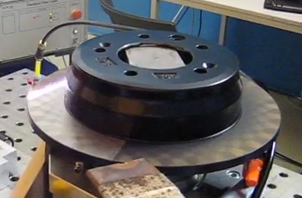

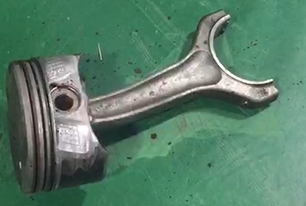

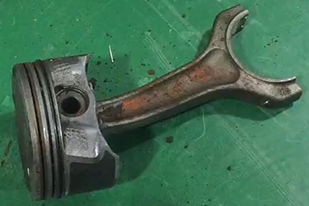

Sample Gallery
