Looking to elevate your workshop’s capabilities? Our enclosed, heavy-duty CO2 laser cutting system delivers fast, precise cuts and engraving—all in a safe, robust design. Built for durability and efficiency, this machine ensures consistent high-quality results on a wide range of materials, from wood and acrylic to fabrics and more.

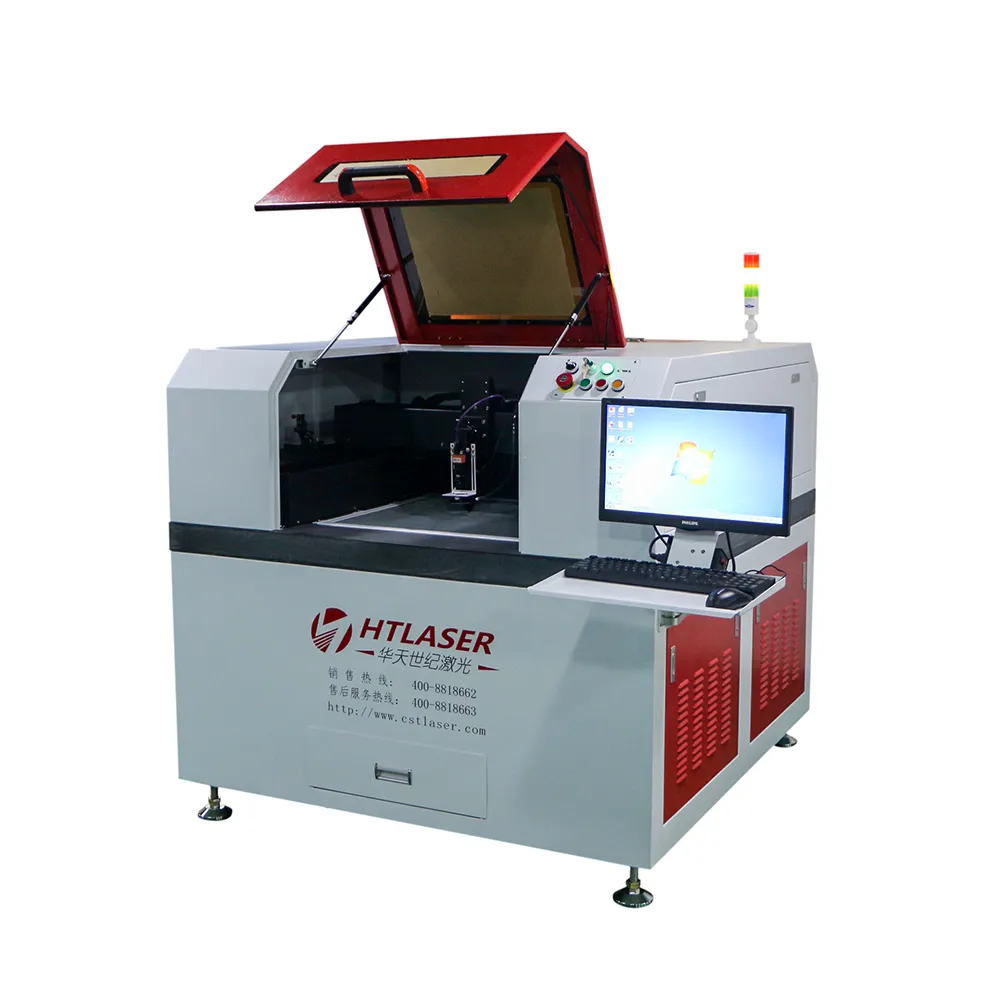

CO2 Laser Cutting Machine – High-Speed Precision Cutting
Perfect for cutting digital display industry materials, including:
| Model | HT-CO2- 5060–30 | HT-CO2- 6060–60 |
| Laser wavelength | 10.6 μm | 10.6 μm |
| Laser power | 30w | 60W |
| Working area | 500*600mm | 600*600mm |
| Repeatability accuracy | ±0.01mm | ±0.01mm |
| Positioning accuracy | ±0.02mm | ±0.02mm |
| Max. Material Thickness | 5.0mm | |
| Cutting speed | 0～500 mm/s | |
| Cooling system | Air cooling | Water cooling |
| Machine dimension | 1210*1200*1300mm | 1600*1420*1600mm |
| Weight | 800Kg | 950kg |
| Power supply | 220VAC, 50/60HZ, 50A | 220VAC, 50/60HZ, 60A |
| Total power | 5.5Kw | 8Kw |
