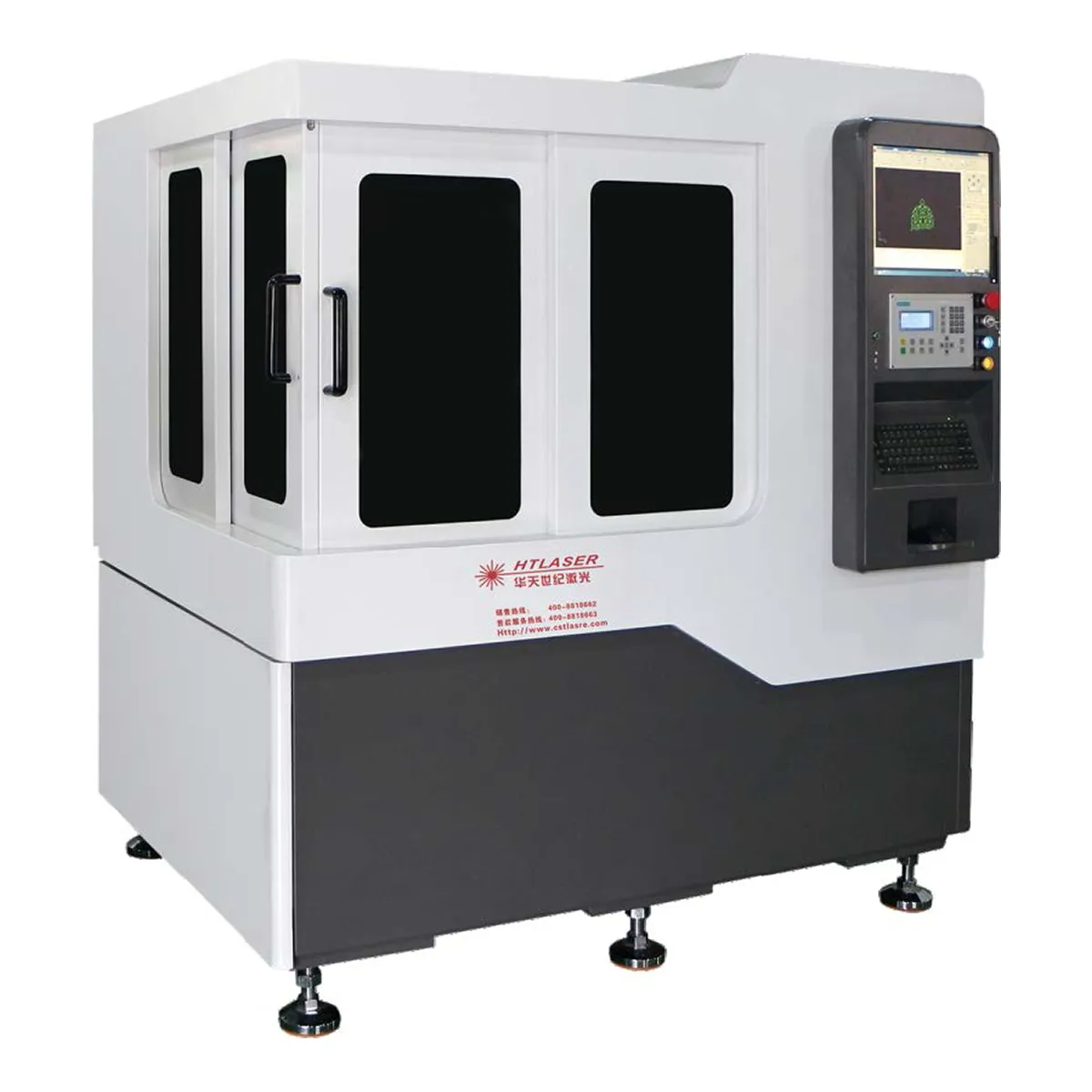

Upgrade your production with an intelligent laser cutting system that thinks for itself. Our advanced workstation auto-optimizes cutting paths in real time—maximizing speed, minimizing waste, and ensuring flawless precision on every job.
✔ Premium Fiber Laser & Cutting Head – Imported for superior stability and performance.Minimizes maintenance。
✔ Smart Cutting Software – Custom-designed to auto-optimize cutting paths, paired with high-precision servo motors for faster processing and ultra-fine accuracy.
✔Auto-Focus Tracking – Automatically adjusts to workpiece curves/height variations—no manual focus needed.

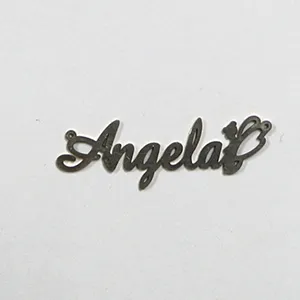

✔ Rotary Cutting System – Perfect for rings, bracelets, and cylindrical parts.
✔ Efficient Material Recovery – Minimizes waste with efficient scrap collection.
Cutting machine has great advantage,especially for high anti materials (gold, silver, copper, aluminum, titanium, etc.)
| Model | H T-FC500 | HT-FC800 | HT-FC1000 | ||
| Laser power | 500W | 800W | 1000W | ||
| Working area | 300x300mm | ||||
| Laser-type | Fiber Laser | ||||
| Laser wavelength | 1070 ±10 nm | ||||
| Cutting thickness and cutting speed | Adjustable according to different | ||||
| Max lifting range | 120mm | ||||
| Minimum line width | 0.04-0.06mm | ||||
| Positioning accuracy | ±0.01mm | ||||
| Softwaresu pporting file | A1,DXF,PLT,Gerber.., and acceptable the,Internation Standard G Code generated by by Mater’ Cam, Type3,Wentai softwares. | ||||
| Working voltage | 220V/50Hz /30A | ||||
| Power consumption | 4KW | ||||
| Transmission method | Import Ball Screw Transmission | ||||
| Cooling way | Water-Cooling | ||||
| Focus method | Following and Automatic Adjust Focus | ||||
| Controller | Wireless Remote Controller and Industry Computer | ||||
| Control software | Professional Intelligent CNC Cutting System | ||||
| Machine dimension | 1700x1700x1740mm | ||||
| Water tank dimension | 700x450x1000mm | ||||
| working temperature | 5-40℃ | ||||
| Working Humidity | 5-95%Relative humidity (no condensation) | ||||
