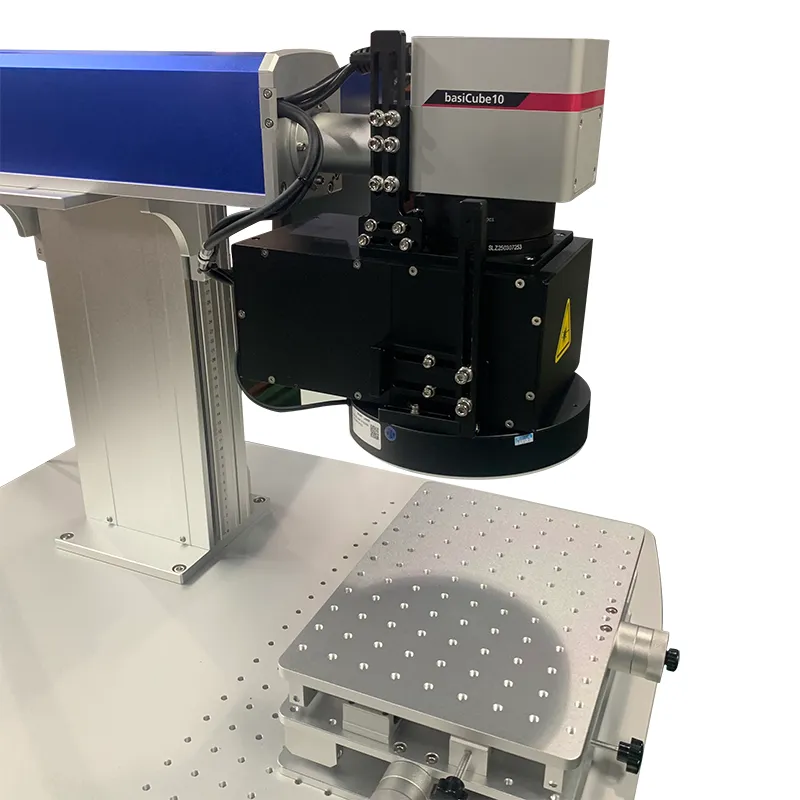

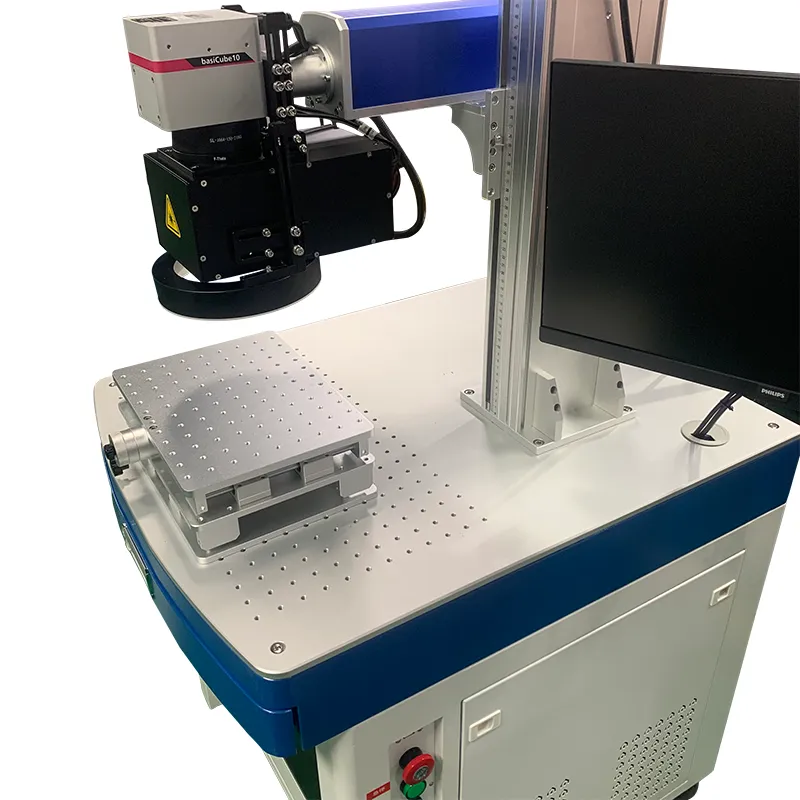

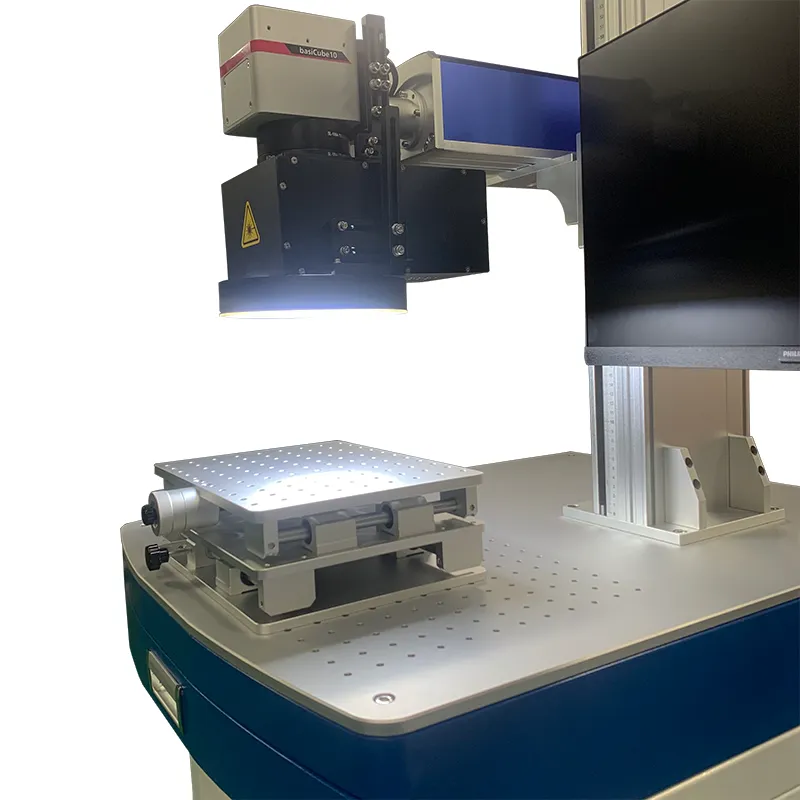

Achieve unparalleled precision in laser marking with our advanced visual positioning system. This system ensures flawless accuracy by utilizing high-resolution cameras, smart pattern recognition, and real-time calibration. It automatically detects and adjusts to variations in the workpiece, effectively eliminating misprints and ensuring consistent quality.
Suitable for marking a wide range of materials, including metals, plastics, and delicate electronics, this system delivers razor-sharp engravings. By removing the need for manual adjustments, it boosts efficiency and reduces waste. Ideal for industries requiring absolute precision, such as automotive, aerospace, and medical device manufacturing, this technology enables effortless, high-speed laser marking, minimizing errors and maximizing productivity.
✔ Auto-alignment – No manual positioning
✔ Sub-micron accuracy – Ideal for tiny parts
✔ User-friendly software – Simple setup, no expertise needed
✔ Fixturing-free – Save develop time and increased throughput
(depend on different applicational materials, we also offer UV laser/CO2 laser source instead of Fiber one)
Image Capture → The camera takes an image of the workpiece.
Feature Recognition → Software identifies reference points or patterns.
Coordinate Transformation → Converts camera coordinates to laser marking coordinates.
Precision Marking → The laser marks the exact desired location, compensating for part misalignment.

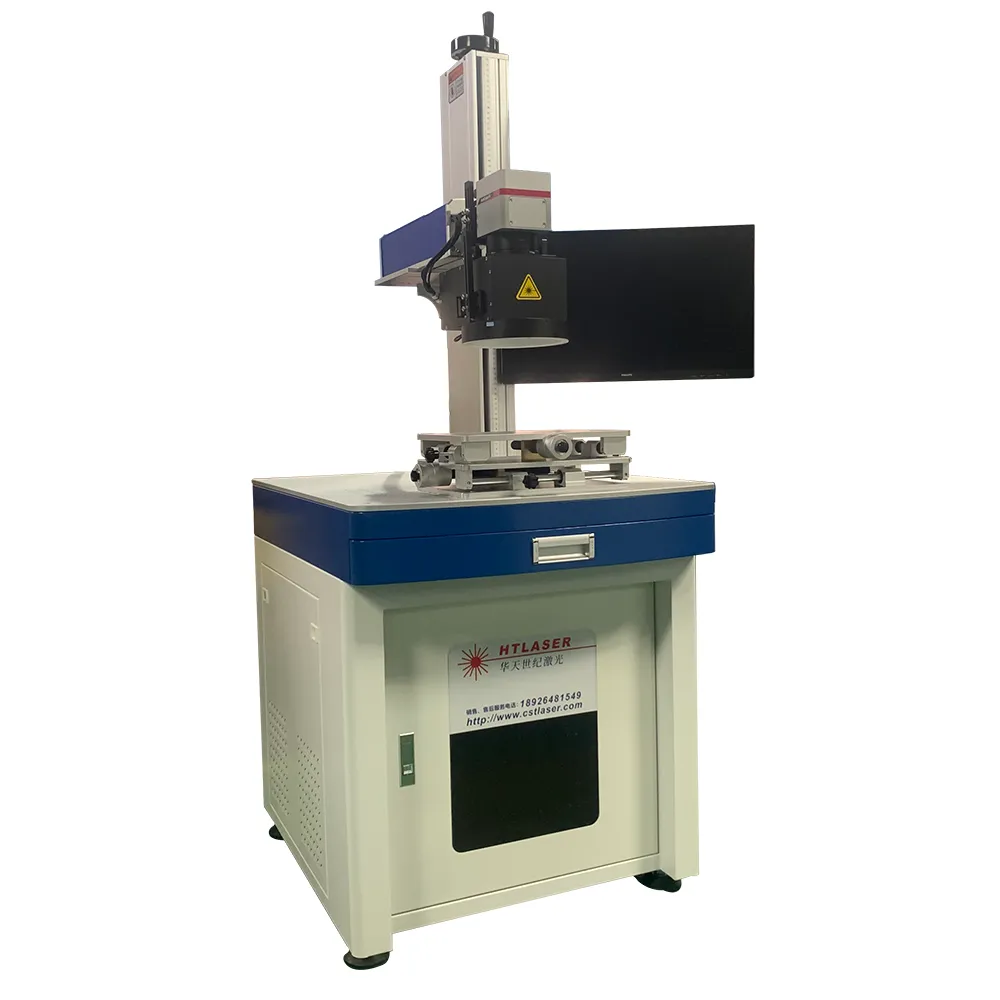

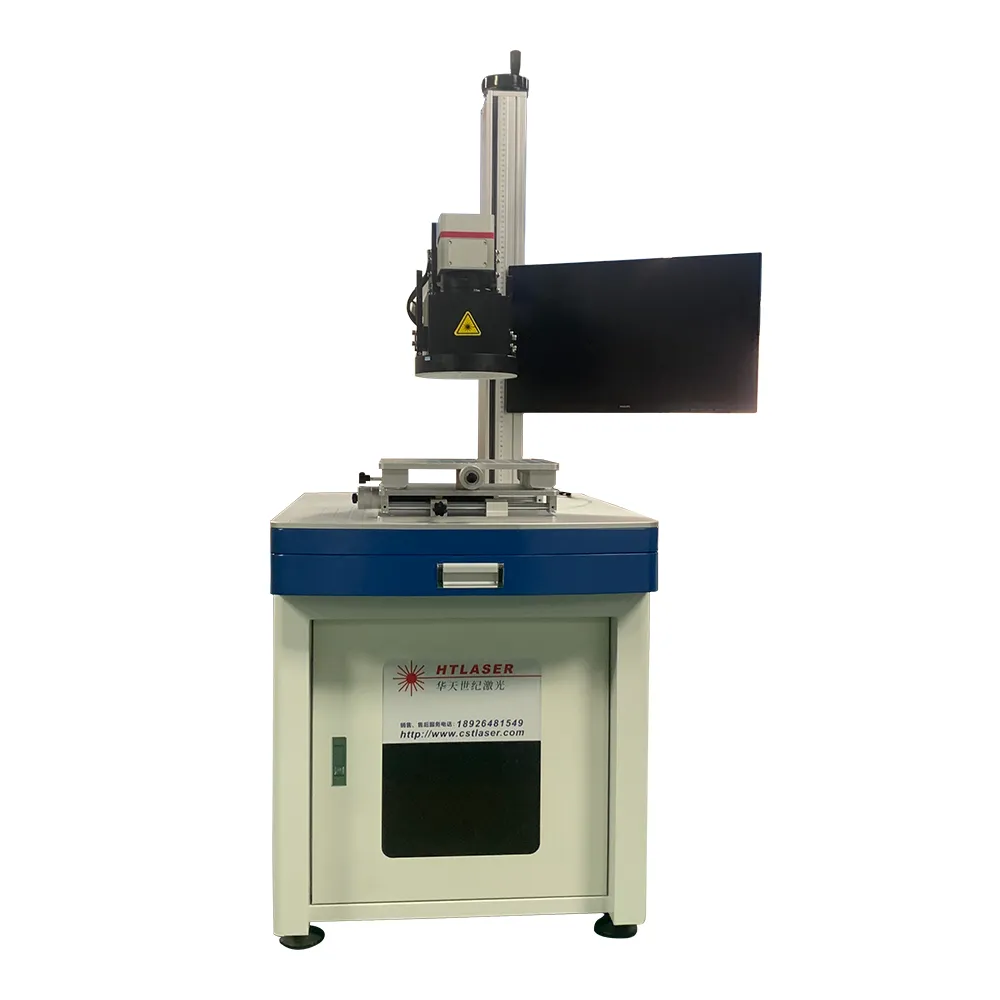

| Model | HT-VF-100 |
| Laser source | Fiber laser |
| Marking speed | 7000mm/s |
| Field of view | 100×100-300×300((mm)Optional) |
| Marking depth | <0.5mm |
| Repeated accuracy | ±0.002mm |
| Min. line width | 0.01mm |
| Min.character | 0.15mm |

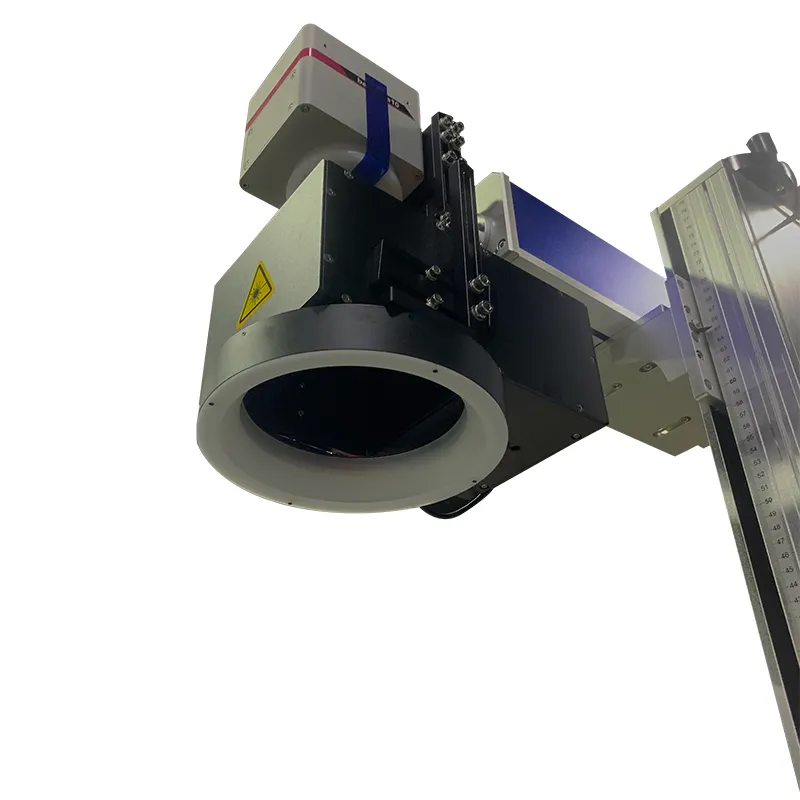

| Positioning system | CCD camera |
| Accuracy | 0.01mm |
| Positioning response | 200ms |
| Camera system | Co-axis CCD camera positioning |
| Power supply | 220V/50Hz |
