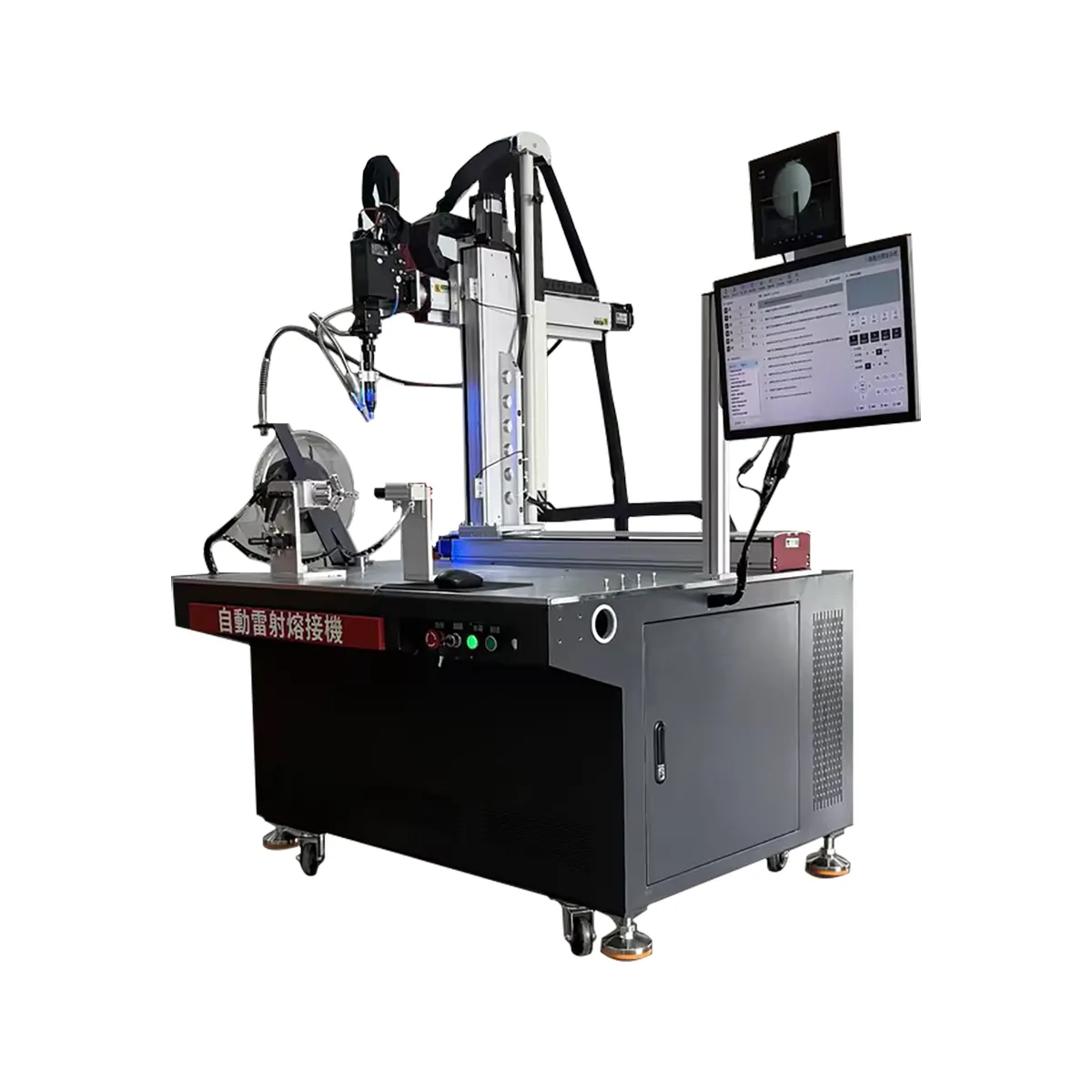

4-Axis Platform Automatic Laser Welding Machine
Product Categories
Contact Us
Product Description
Key Features
- Automated Operation – Programmable CNC platform enables hands-free welding with consistent results.
- High-Power Laser Source – Delivers deep penetration and clean welds with minimal heat distortion.
- High-Speed Welding – Increases productivity with rapid processing times.

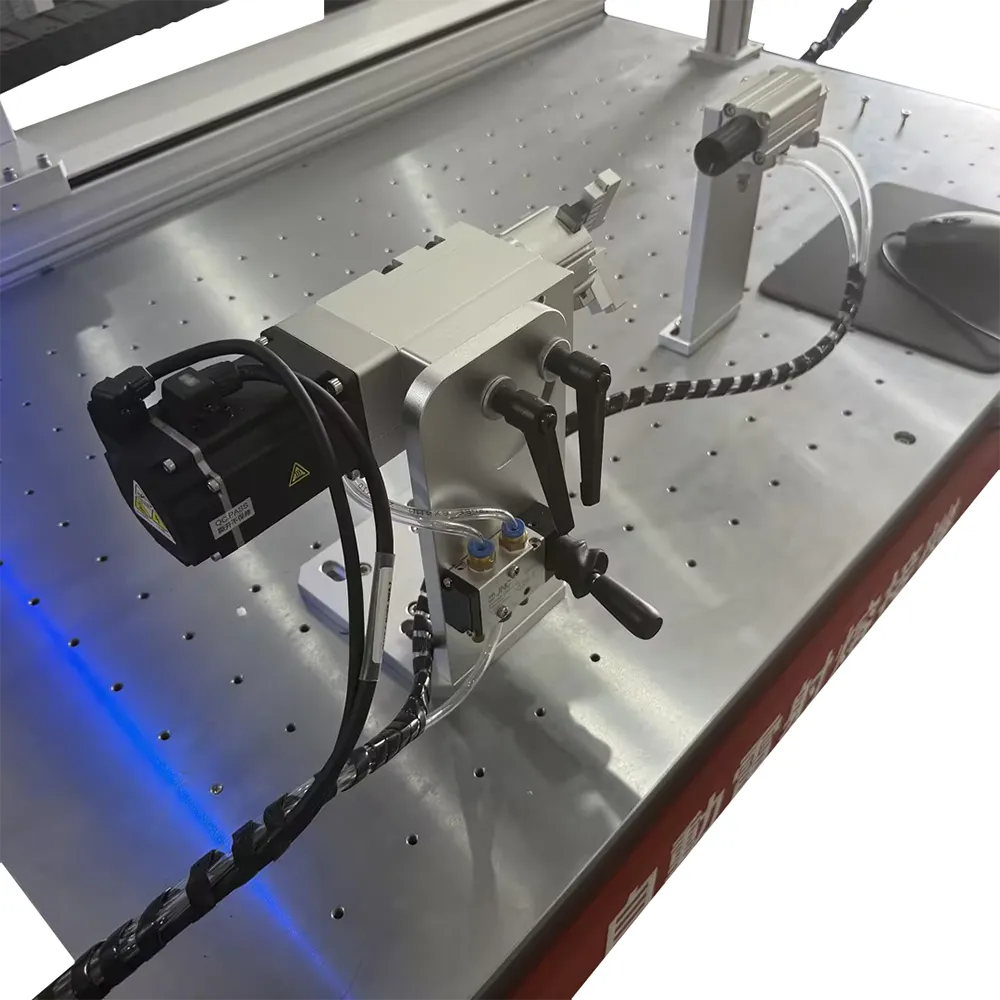

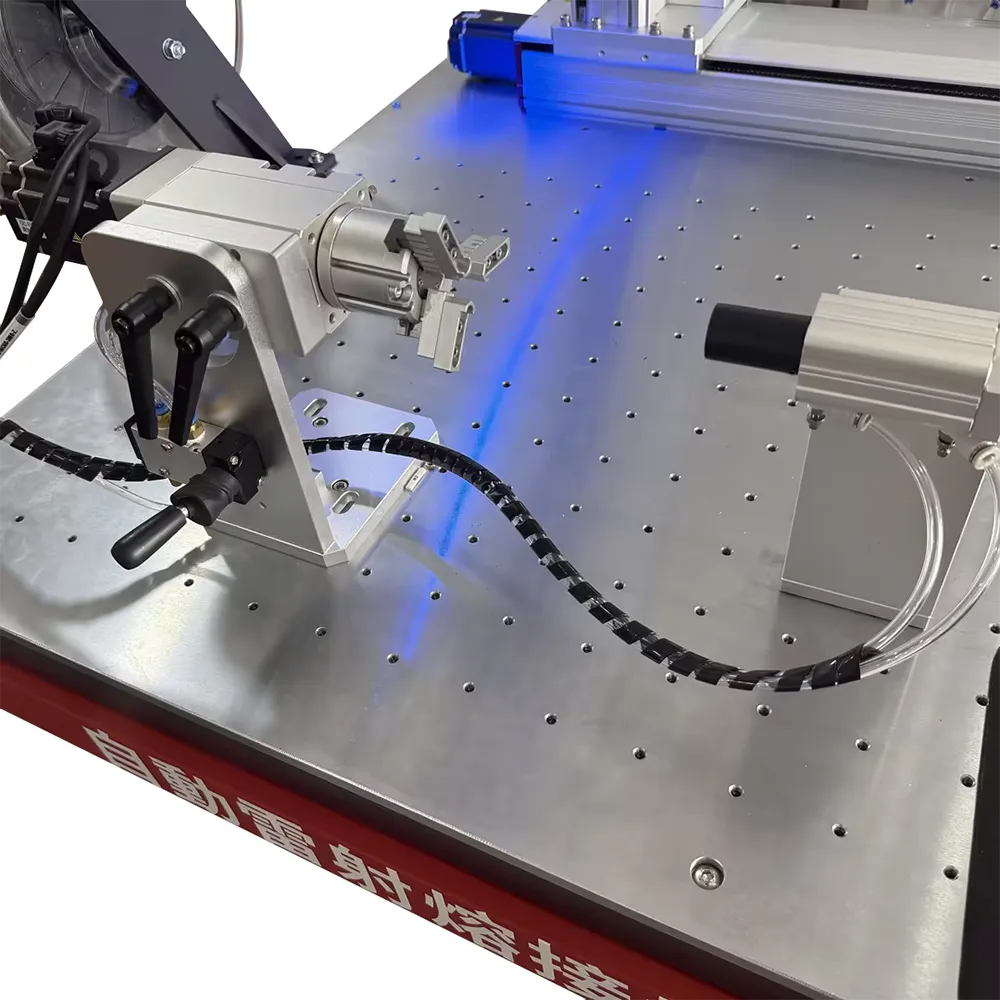

- 4-Axis CNC Control – Enables multi-directional welding (X, Y, Z + rotary axis) for complex part geometries.
- Low Heat Distortion – Focused laser beam minimizes thermal impact, preserving material integrity.
- Sturdy & Stable Platform – Heavy-duty construction ensures vibration-free performance.
- Minimal Post-Processing – Produces smooth, spatter-free welds, reducing finishing work.
- Vision & Positioning System – Ensures accurate alignment and weld path tracking.
- Durable Construction – Robust design for long-term industrial use.
How It Works:
- Material Loading – The workpiece is placed on the automated platform.
- Programming & Alignment – The CNC system and vision system calibrate the welding path.

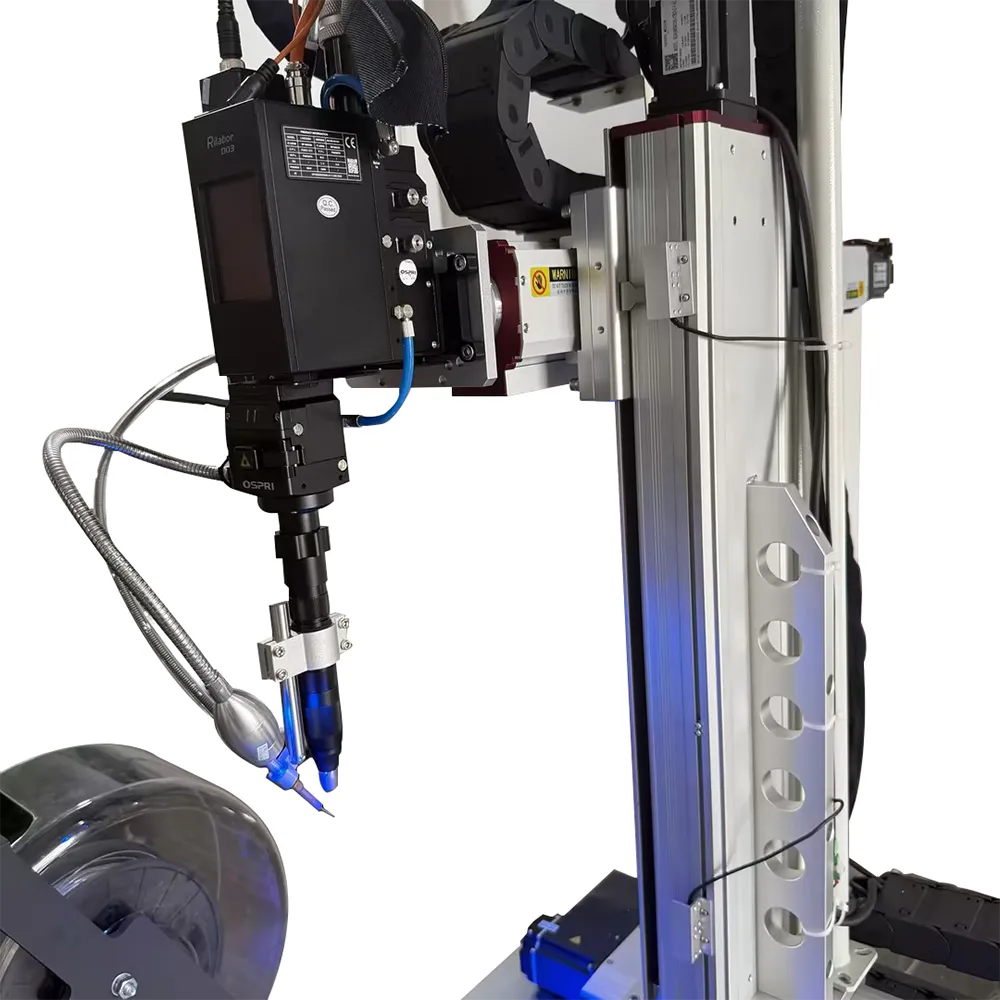

- Laser Welding – The 4-axis mechanism moves the laser head precisely along the programmed path, fusing materials with minimal spatter.
- Quality Inspection – Optional real-time monitoring ensures weld integrity.
Technical parameter
| Model | HT-F1000 |
| Laser power | 1000W |
| Laser type | Fiber laser |
| Fiber length | 10m |
| Laser wavelength | 1080nm |
| Laser Welding Depth | <3mm |
| XYZ stroke | 800*400*400mm |
| Visual system | CCD monitor |
| Laser spot adjust range | 0.2-5mm |
| Temperature of Operation | 0℃~40℃ |
| Cooling method | Water cooling |
