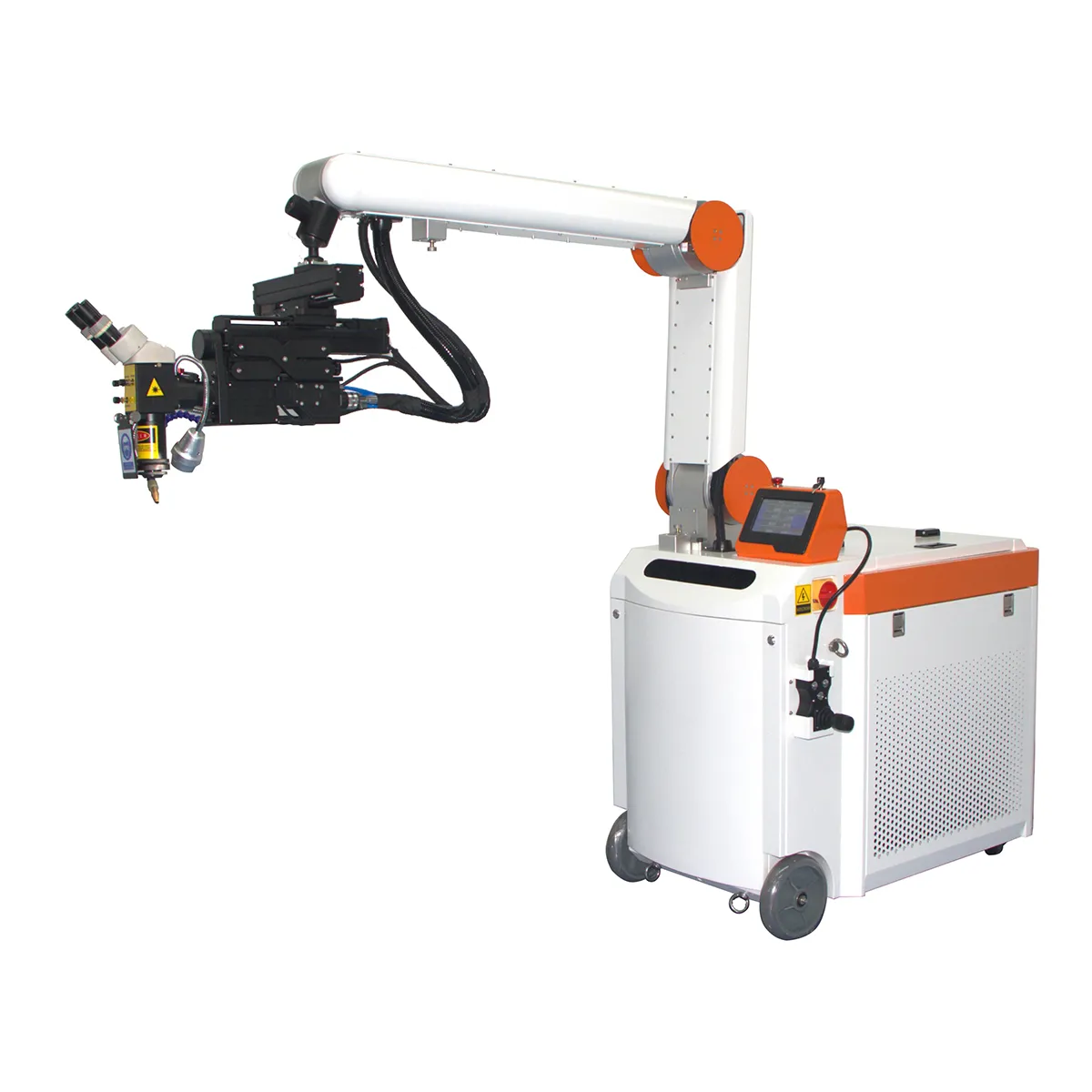

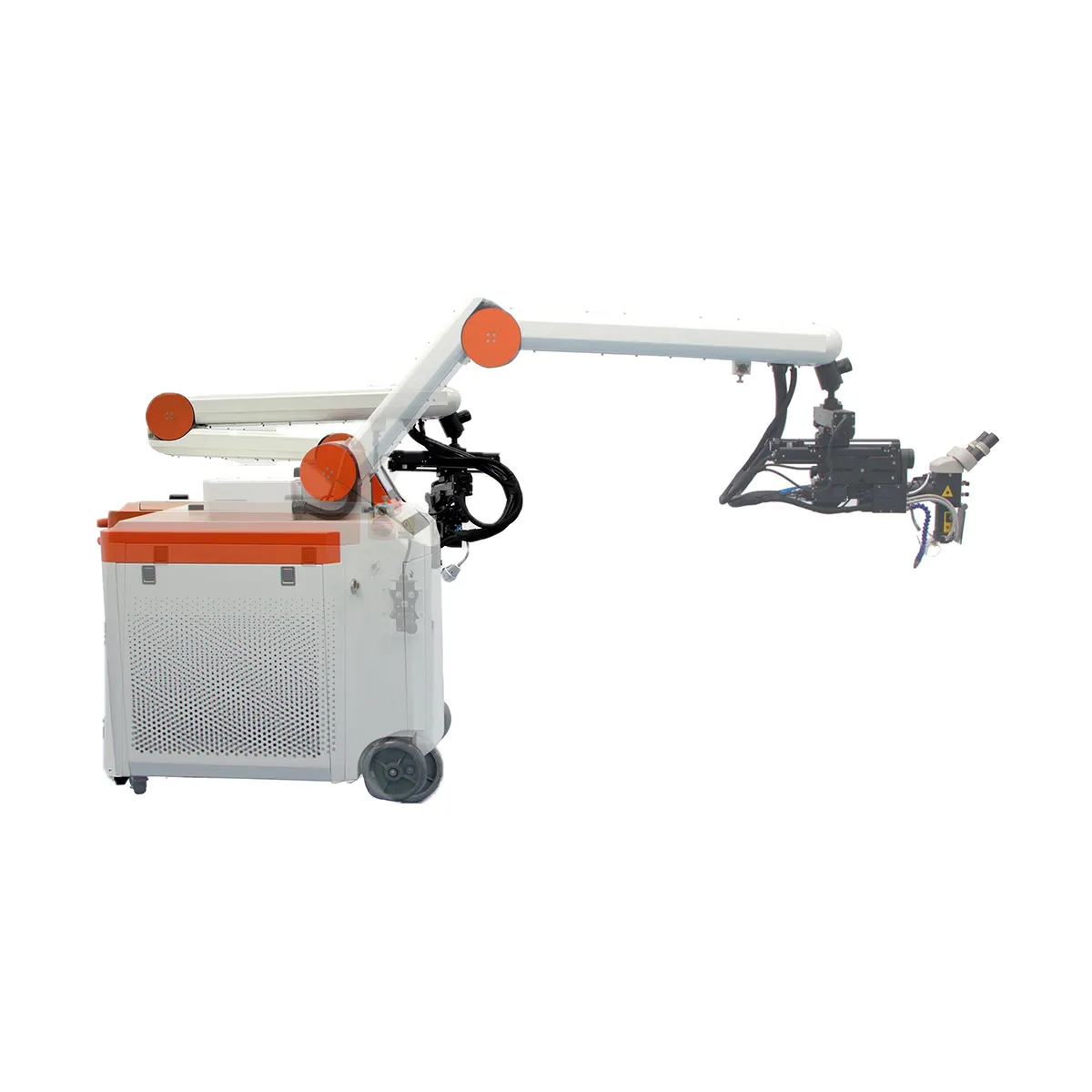

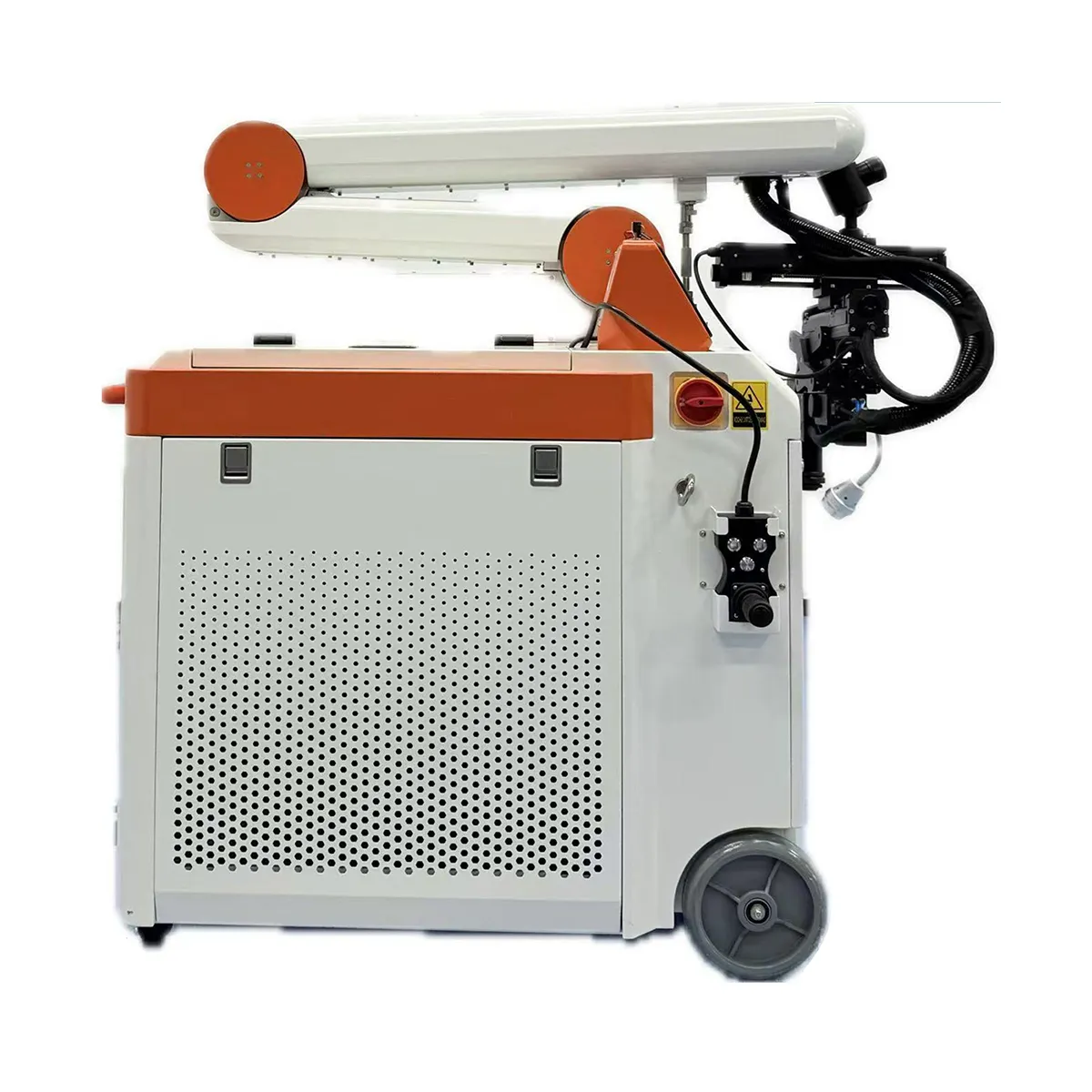

The Articulated-Arm Laser Welding Machine streamlines large mold repair by eliminating the need for disassembly. Its mobile design and flexible arm allow for on-site welding, significantly reducing downtime. Furthermore, the machine excels in welding metal parts, automotive components, and precision hardware. The 360° rotating arm provides access to confined spaces and complex angles, ensuring consistently high-quality welds.
Full 360° Rotating Cantilever Arm – No Blind Spots
High Efficiency & Stability – Ideal for Long-Term Operation
Exceptional Mobility & Flexibility
Quick-Adjust Rotary Control Panel
Integrated Gas Shielding System
Optional Dual-Axis Swing Welding Head
| Model | HT-MDS-QCW150 | HT-MDS-QCW300 | HT-MDS1500 |
| Laser parameters | |||
| Laser type | QCW (Quasi-Continuous Wave) fiber laser | Fiber laser | |
| Size of light spot | 0.2-3.0mn | 0.2-5.0mn | |
| Laser wavelength | 1080±10nm | ||
| Pulse width | ≤20ms | ≤60ms | |
| Pulse frequency | ≤30Hz | ≤25Hz | |
| Cooling system | Water cooling | ||
| Observing system | CCD+Microscope(360° adjustable) | ||
| Power supply | AC220V 50/60 Hz | ||
| Machine dimensions | 1380×1000×1240mm | ||
| Articulated arm extension height/Vertical Extension | 1500mm | ||
| Articulated arm extension length / Horizontal Reach | 1600mm | ||
