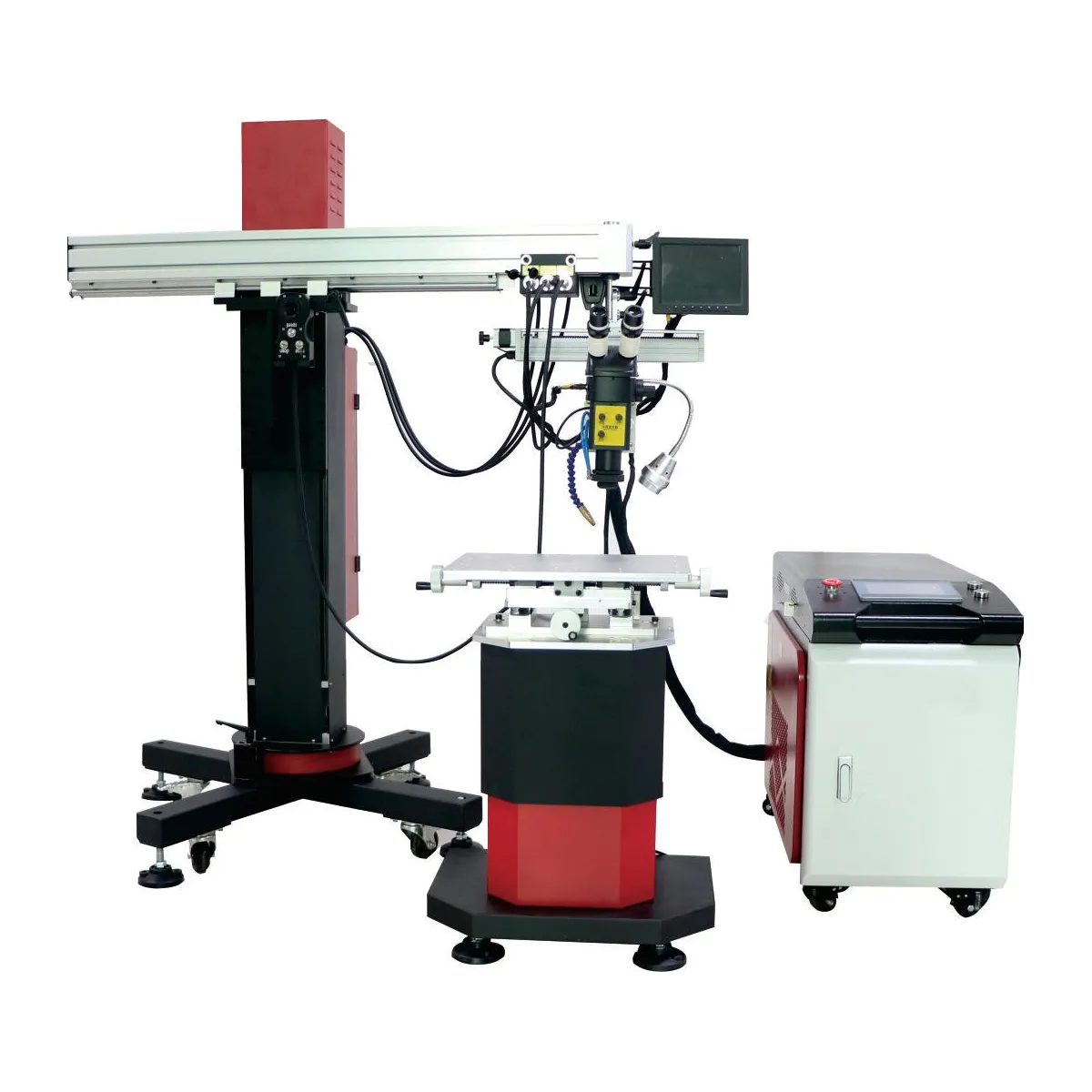

For precision mold repair and maintenance, our 3-Axis Fiber Laser Welding Machine offers unparalleled accuracy. Featuring advanced fiber laser technology, a stable workbench, a high-resolution CCD camera, and an integrated microscope, it ensures minimal heat input and distortion-free welds. Ideal for tool shops and manufacturers seeking rapid turnaround and smooth production lines.
High-Precision 3-Axis Motion System
Dedicated Mold Workbench
Robust Fiber Laser Source
Pulse Control & Energy Adjustment
Integrated CCD + Microscope Vision
User-Friendly Parameter Interface
| Model | HT-MDTL1500 | HT-MDTL2000 |
| Work bench size | 450×350mm(X,Y hand control, Z automatic control) | |
| Bearing of work bench | ≤100kg | |
| Power supply | AC220V 50/60 Hz | |
| Laser parameters | ||
| Laser power | 1500W | 2000W |
| Laser type | Fiber laser | |
| Size of light spot | 0.2-2.0mn | |
| Laser wavelength | 1080±10nm | |
| Pulse width | ≤60ms | |
| Pulse frequency | ≤25Hz | |
| Cooling system | Water cooling | |
| Observing system | CCD+Microscope(360° adjustable) | |
| Host welder dimensions | 1000×500×700mm | |
| Boom size | 850×850×1700mm | |
