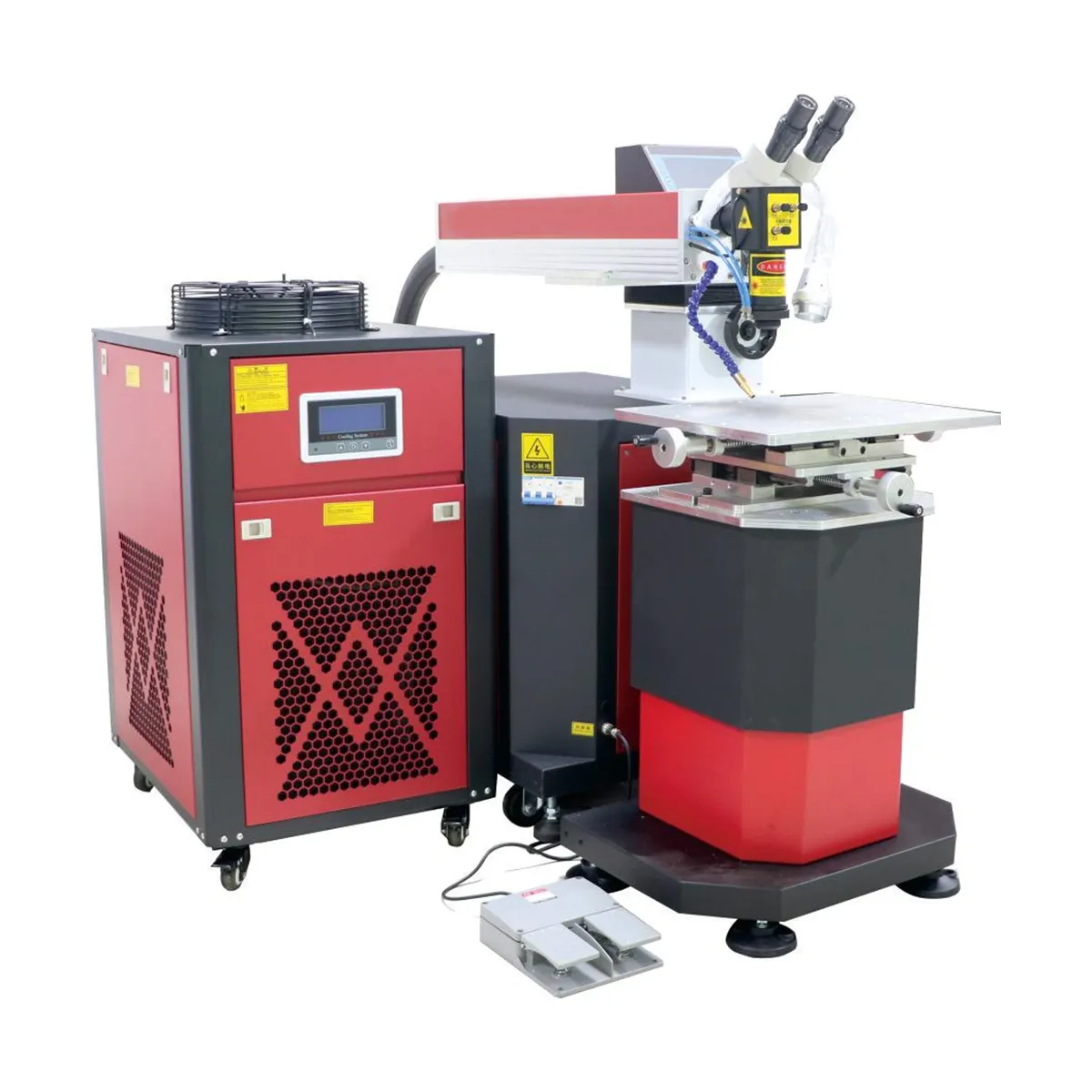

The Compact Fiber Laser Welding Machine offers rapid, high-precision mold repairs with user-friendly operation and minimal setup. Ideal for workshops and tooling businesses, it delivers precise, low-heat welds on molds, dies, and delicate metal components.
Features include manual axis adjustment, a stable workbench, and optional CCD camera for enhanced accuracy. An entry-level solution for repairing cracks, wear marks, and minor defects, extending mold life and reducing downtime.
Robust Fiber Laser Source
Simple Touchscreen Operation
Compact & Space-Saving
Optional CCD Camera & Microscope
| Model | HT-MDWL1500 | HT-MDWL2000 |
| Work bench size | 450×350mm(X,Y hand control, Z automatic control) | |
| Bearing of work bench | ≤100kg | |
| Power supply | AC220V 50/60 Hz | |
| Laser parameters | ||
| Laser power | 1500W | 2000W |
| Laser type | Fiber laser | |
| Size of light spot | 0.2-2.0mn | |
| Laser wavelength | 1080±10nm | |
| Pulse width | ≤60ms | |
| Pulse frequency | ≤25Hz | |
| Cooling system | Water cooling | |
| Observing system | CCD+Microscope | |
| Host welder dimensions | 1450×550×1140mm | |
| Water Chiller dimensions | 850×600×1100mm | |

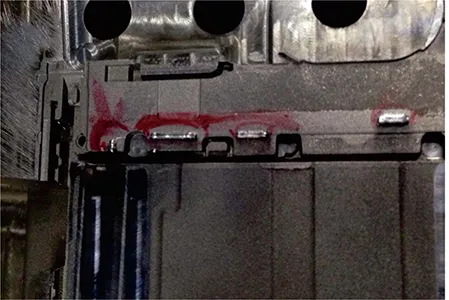

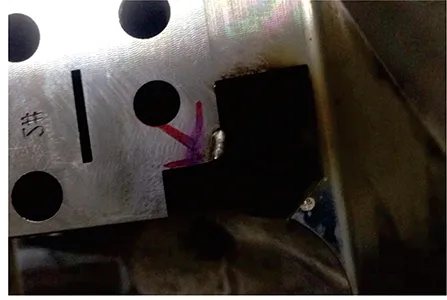

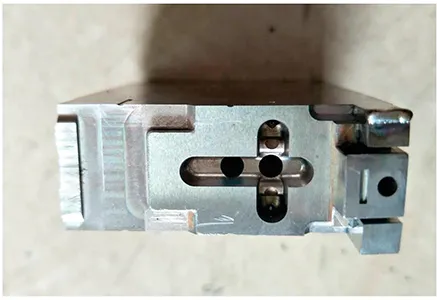

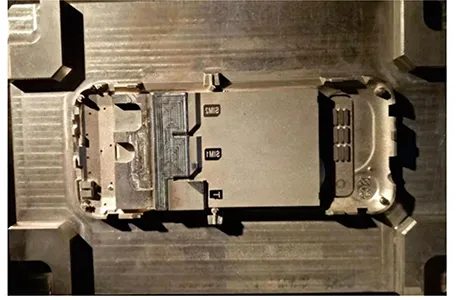

Plastic Injection Molds – Repair gate marks, erosion, or cracks.

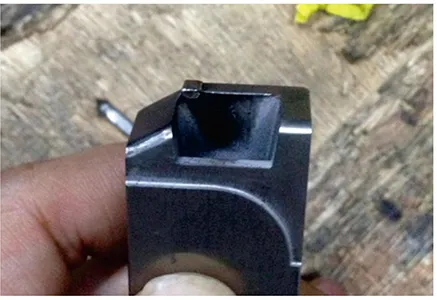

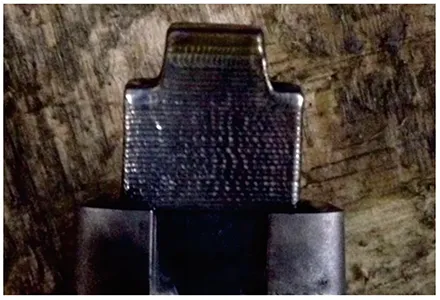

Stamping Dies – Fix chipped edges or worn sections.

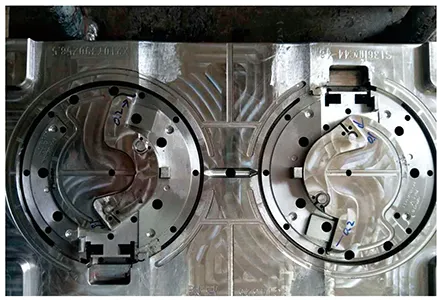

Die-Casting Molds – Weld-rebuild damaged cores and cavities.

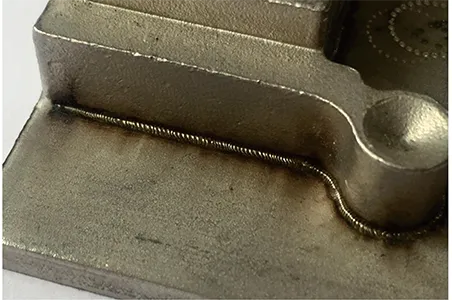

Small Metal Parts – Precision welding for jewelry, medical tools, and electronics.
