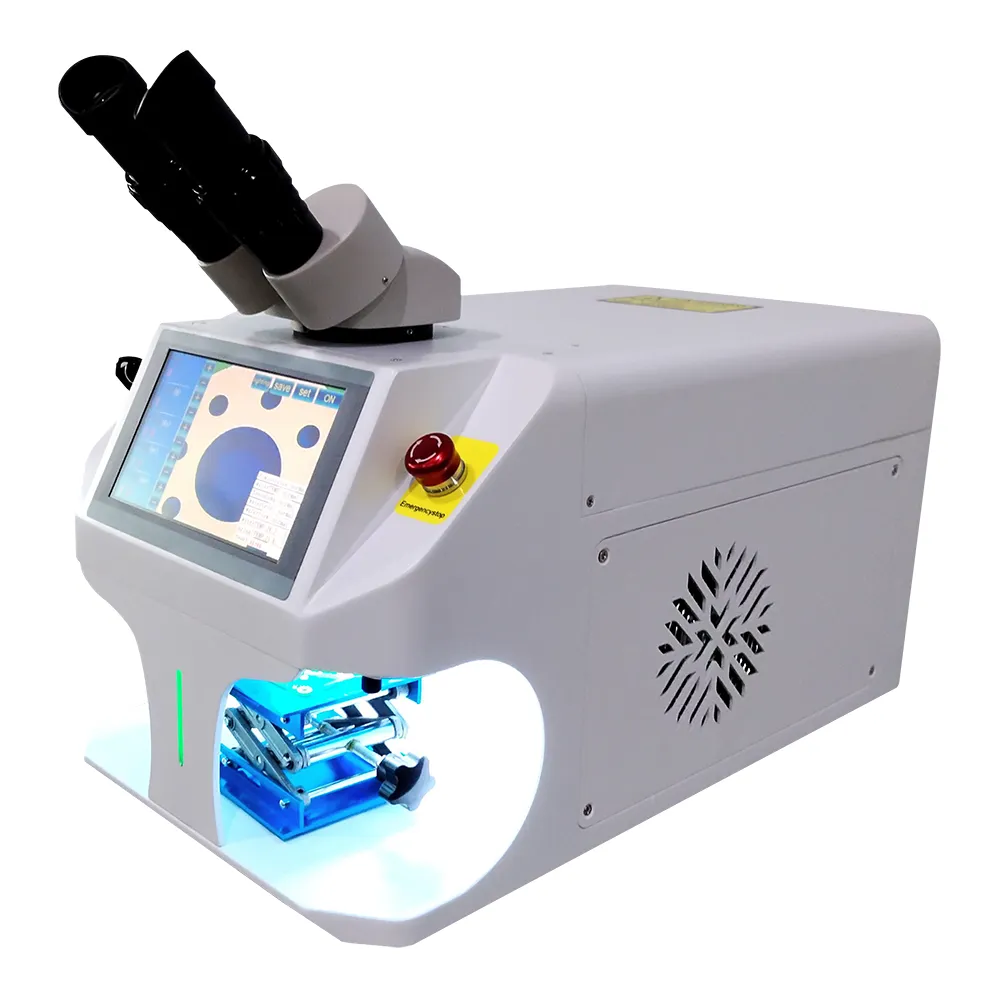

HT Mini Jewelry Laser Spot Welding Machine is designed for efficiency and precision in the jewelry industry. Its compact desktop design allows for easy use in small spaces, making it an ideal tool for tasks such as spot welding, perforating, repairing, re-tipping, and resizing gold, silver, and titanium jewelry, as well as small accessories. Equipped with advanced technology, this machine is an essential investment for jewelers looking to enhance their craftsmanship with unparalleled accuracy and control.
Ergonomic Design: Comfortably designed for long tasks, meeting the needs of jewelers.
High Brightness Illumination: Adjustable LED ring light for clear observation of welding positions on an HD-CCD display and 10X microscope.
User-Friendly Control System: Enables easy adjustment of welding parameters to suit various jewelry materials.
Precise Welding Characteristics: High aspect ratio, thin weld width, and narrow heat-affected zone with zero deformation ensure fast and efficient welding.
Versatile Welding Capabilities: Can perform spot, butt, and overlap sealing welding on a variety of metals.
Adjustable Laser Parameters: Energy, pulse width, frequency, and focus can be easily modified for different effects.
Durable Components: Ceramic focusing cavity designed for long service life, resistant to corrosion and high temperatures.
Automatic Light Shielding System: Protects the operator’s eyes from bright light during operation.
Continuous Operation: Reliable performance for 24-hour operation with minimal maintenances.
Perfect for:
| Model | HT-W80/100 |
| 7-inch screen | HD display screen 20X |
| Microscop | 10X |
| Power | 80W/100W |
| Power regulation range | 1-100% |
| Frequency | 1-30Hz |
| Wavelength | 1064 nm |
| Pulse width | 0.1~10ms |
| Spot adjustment | 0.1-3.0 mm |
| Minimum Spot | 0.2mm |
| Cooling system | air cooling |
| Operating temperature | 10-35℃ |
| Power supply | AC220V±10%, 50/60 Hz |
| Total power | <2KW |
| Dimensions(L x W x H) | 510 *295 *420 mm NW: 28KG |
| Packing size(L x Wx H) | 720 *380 *460 mm GW: 42KG |
