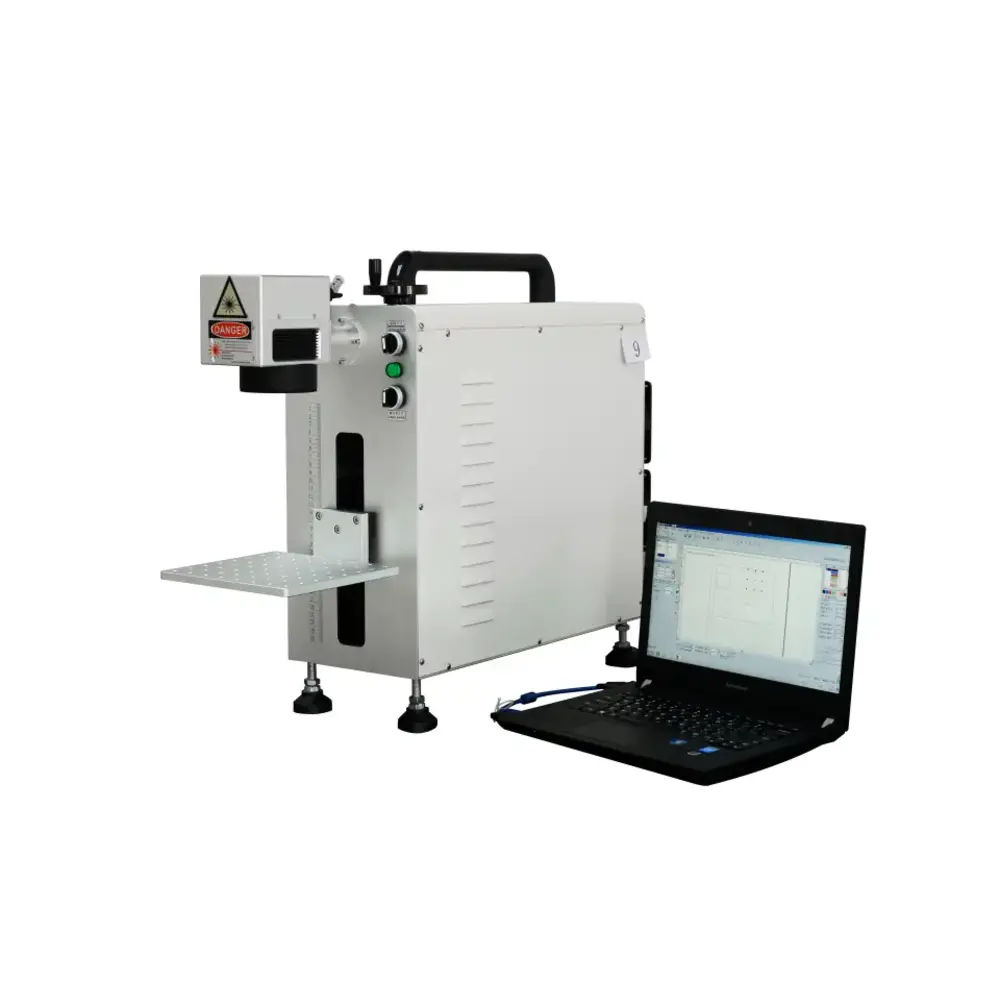

This innovative laser marking machine combines the laser head and cabinet into a single, space-saving unit. Its ultra-compact design makes it perfect for small workshops or on-the-go applications, while still delivering high-speed, precision marking. Easy to set up and operate, it’s the ideal solution for businesses that need flexibility without sacrificing performance.
| Model | HT-F20 |
| Laser power | 20W (30W, 50W optional) |
| Laser wavelength | 1064nm |
| Repeating frequency | 0-100KHZ |
| Light beam quality | <2 |
| Carving line speed | ≤7000mm/s |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repeating precision | ±0.002 |
| Power supply | 110-220V/50Hz-60Hz single |
| Integrity power | 500W |
| Carving depth | ≤0.3mm |
| Operation system | Windows |
| Cooling method | Inbuilt air cooling |
| Control interface | Standard USB port |
| Carving range | 30mm/30mm-300mm/300mm |
