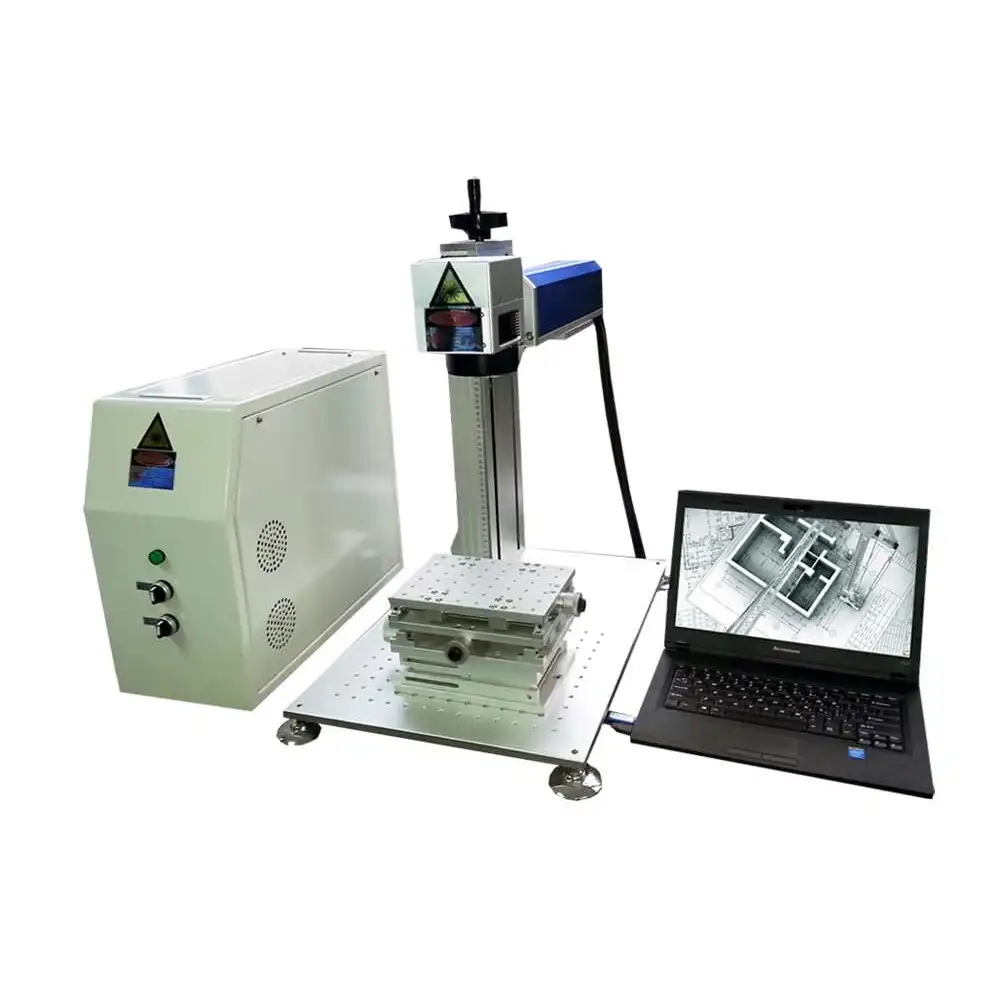

Our split laser marking machine is designed for portability and ease of use. Its lightweight construction allows for flexible installation and effortless relocation, making it ideal for various industrial and workshop environments. Despite its compact design, it delivers high-precision laser marking performance, ensuring efficiency without compromising on quality. Perfect for businesses seeking a versatile and user-friendly solution.
Weight: 50KG
Laser source brands: MAXPHOTONICS, Raycus, JPT, IPG
Galvo Scanner: Chinese or German brand
Fast Lead Time: 7 workdays
Certification: FDA, CE and ISO9001
| Model | HT-F20 |
| Laser power | 20W (30W, 50W optional) |
| Laser wavelength | 1064nm |
| Repeating frequency | 0-100KHZ |
| Light beam quality | <2 |
| Carving line speed | ≤7000mm/s |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repeating precision | ±0.002 |
| Power supply | 110-220V/50Hz-60Hz single |
| Integrity power | 500W |
| Carving depth | ≤0.3mm |
| Operation system | Windows |
| Cooling method | Inbuilt air cooling |
| Control interface | Standard USB port |
| Carving range | 100x100mm-300x300mm Optional |
