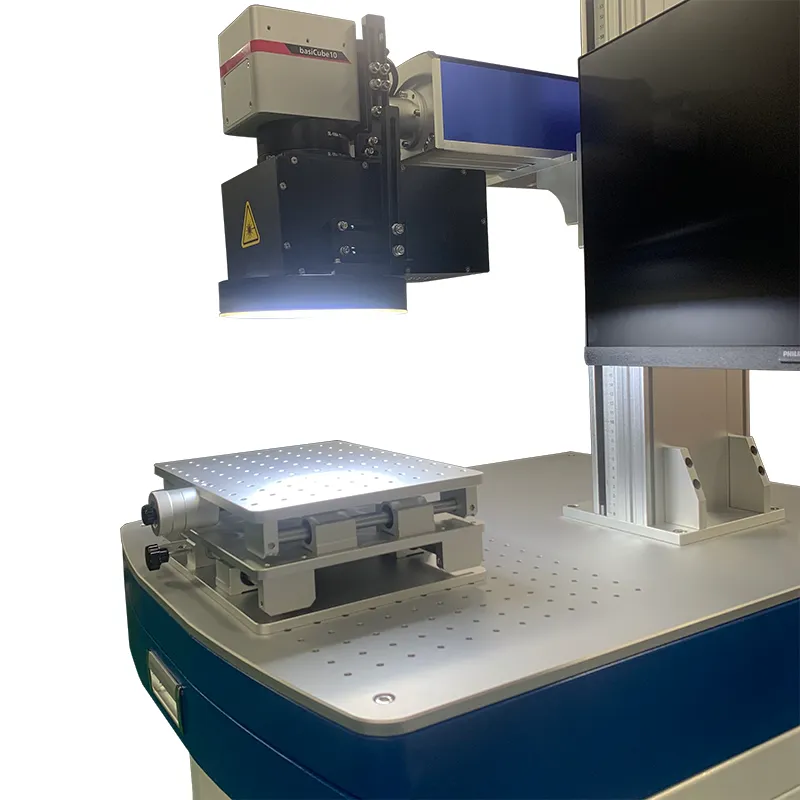

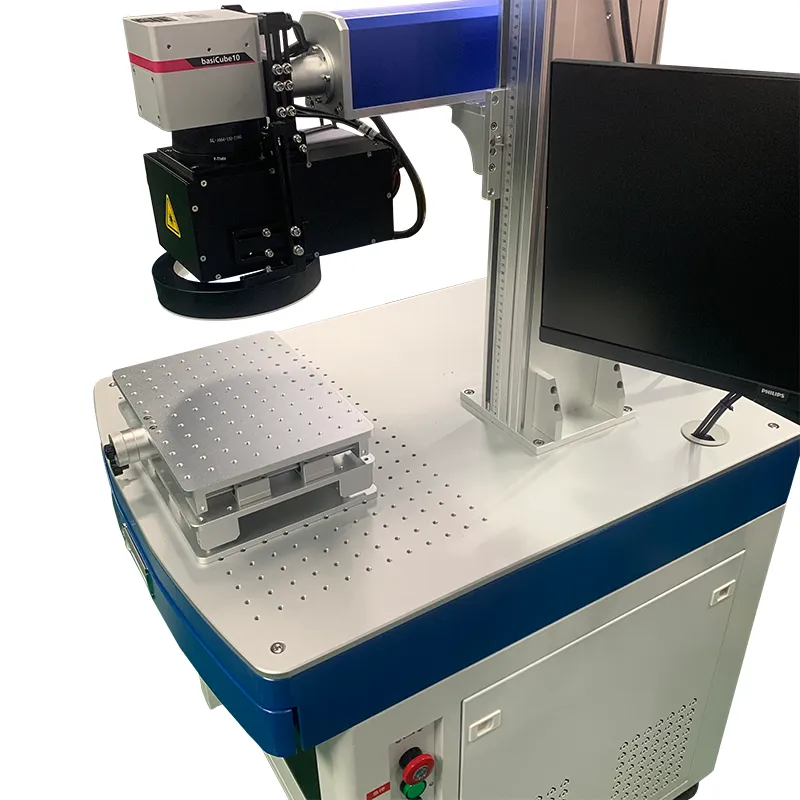

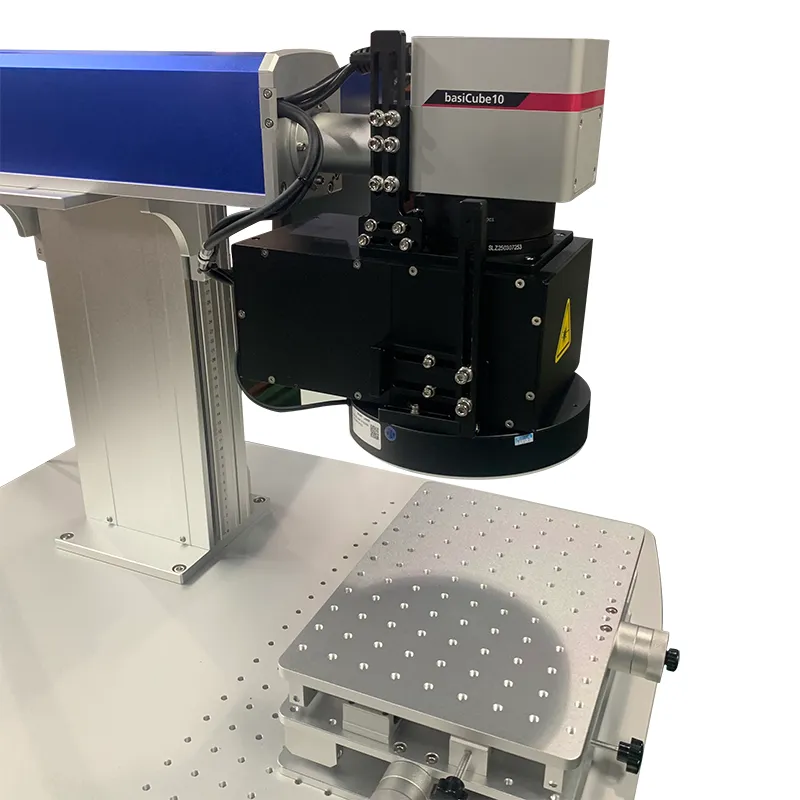

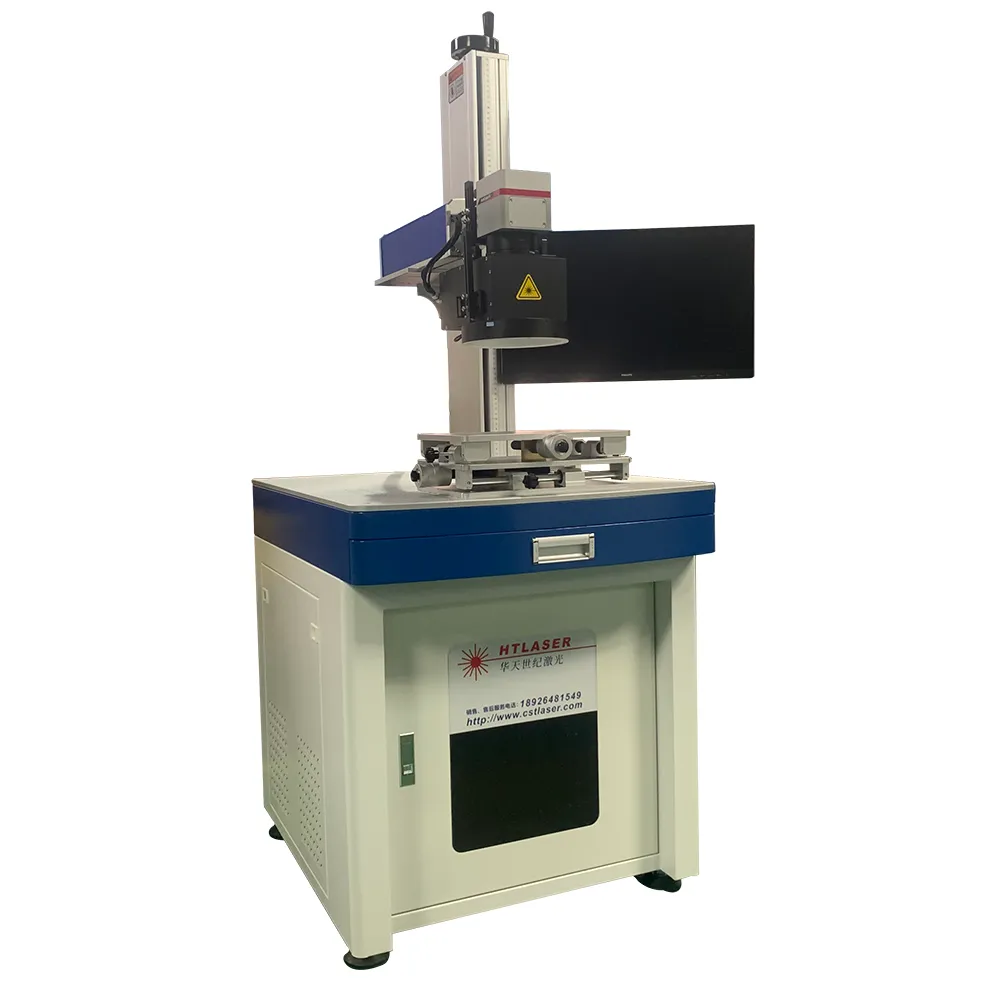

Precision laser marking starts with perfect alignment—our advanced visual positioning system ensures flawless accuracy every time! Equipped with high-resolution cameras, smart pattern recognition, and real-time calibration, it automatically detects and adjusts to workpiece variations, eliminating misprints. Whether you’re marking metals, plastics, or delicate electronics, this system delivers razor-sharp engravings. Boost efficiency, reduce waste, and achieve consistent quality with zero manual adjustments. Perfect for industries demanding absolute precision—automotive, aerospace, medical devices, and beyond. Say goodbye to errors and hello to effortless, high-speed laser marking.
(depend on different applicational materials, we also offer UV laser/CO2 laser source instead of Fiber one)
Image Capture → The camera takes an image of the workpiece.
Feature Recognition → Software identifies reference points or patterns.
Coordinate Transformation → Converts camera coordinates to laser marking coordinates.
Precision Marking → The laser marks the exact desired location, compensating for part misalignment.

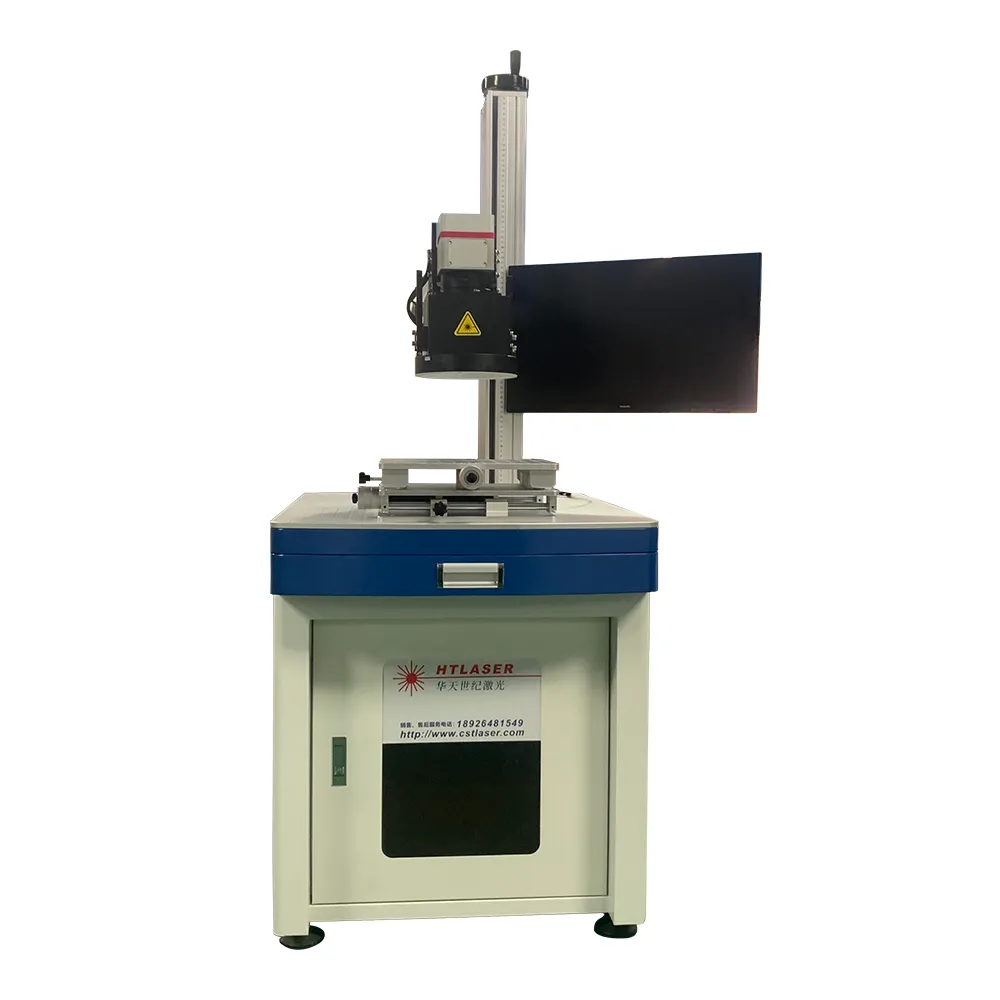

| Model | HT-VF-100 |
| Laser source | Fiber laser |
| Marking speed | 7000mm/s |
| Field of view | 100×100-300×300((mm)Optional) |
| Marking depth | <0.5mm |
| Repeated accuracy | ±0.002mm |
| Min. line width | 0.01mm |
| Min.character | 0.15mm |
| Positioning system | CCD camera |
| Accuracy | 0.01mm |
| Positioning response | 200ms |

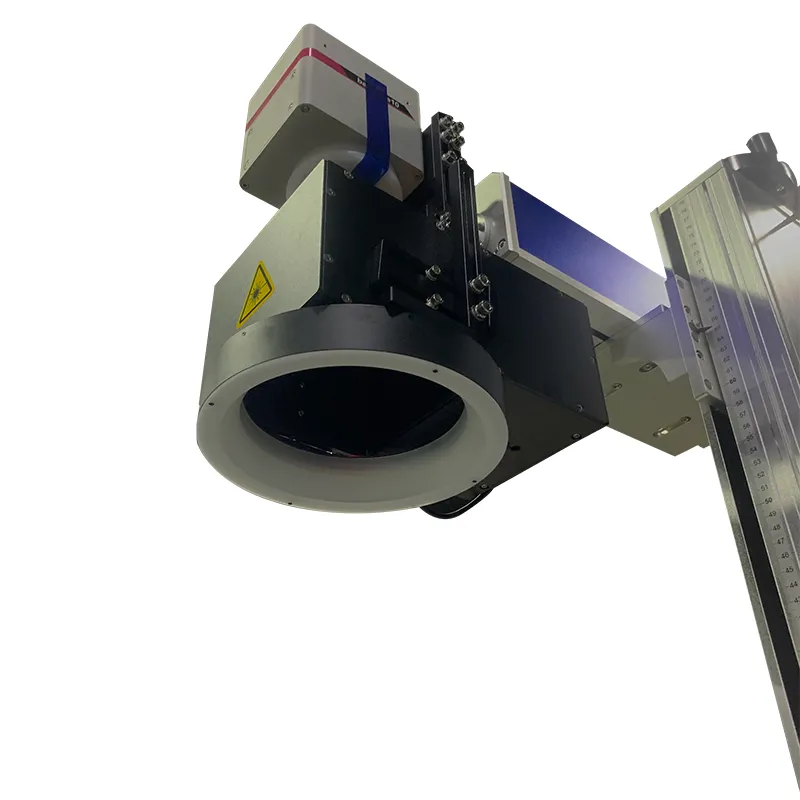

| Camera system | Co-axis CCD camera positioning |
| Power supply | 220V/50Hz |
